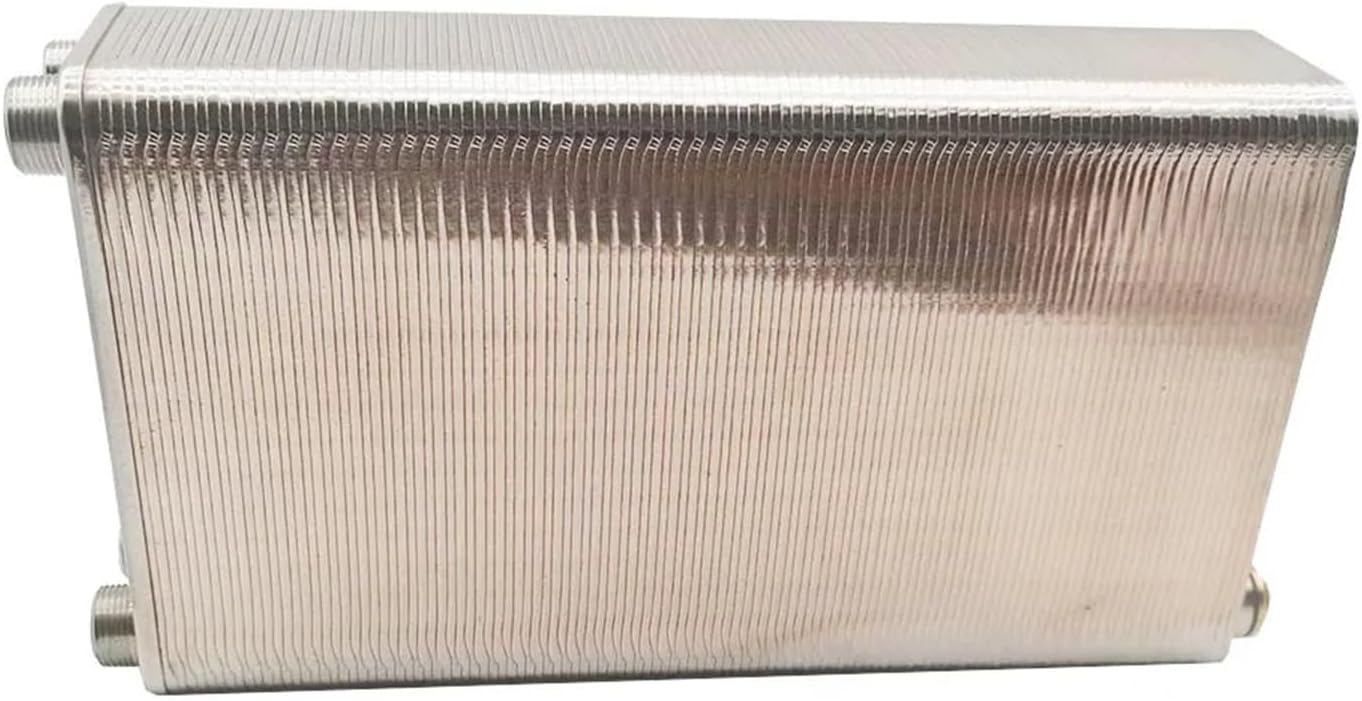

24/32/38 Plates Heat Exchanger Beer Wort Chiller Cooler 304 Stainless Steel 1/2 for Home Hot Water(120 Different Side)
4.0 (131 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215032261 | Release Date | 2026/04/12 | List Price | US$36.00 | Model Number | 215032261 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tap water interface: 20mm outer diameterHeating interface:25mm outer diameter selection(if you need 32mm outer diameter, leave a message to inform us of the interface caliber)Name: Brazed plate type heat exchangerMaterial:SUS 304 Stainless Steel, food gradeWeldIing Material: 99.9% CopperApplication:Home Brew Wort Chiller, Famliy Hot Water supplyThread of Port A1,A2:1/2" BSPT MaleThread of Port B1,B2:1" BSPT MalePlates Number: 100 platesDimension:195x85x310mmHeat Transfer Area/plate: 0.028 m2(0.30 ft2) Thickness of Plate:0.25-0.35mmWorking Temperature:-160 to + 185 Below 50 plates: suitable for washing hands and face60-80 plates: suitable for kitchen washing dishes and dishes.100-120 plates: can support bathing, mainly depends on the heat source's ability to supply heat.Heat exchange rate: 85%Heat source heating capacity> 50 ° C hot water temperature, comfortable bathing<;50 ° C, hot water temperature, average bathing experience (winter)Options Instruction: Same side: mean the 4 ports are in the same sideDifferent side: mean the 4 ports are in different side, each side with 2 ports.
- 【Compact Design】feature a design with high thermal conductivity, small size, and minimal space requirements, making them ideal for installations in confined spaces.
- 【High Heat Transfer Efficiency】Due to the corrugated plate design, BPHEs achieve efficient heat transfer and good fluid distribution, enhancing overall heat exchange efficiency.
- 【Low Maintenance Cost】The structure of it lacks gaskets and seals, reducing potential leakage points and maintenance needs, thereby lowering maintenance costs and frequency.
- 【Versatility】it can handle various fluids, including cooling water, refrigerants, and other industrial fluids, making them suitable for a wide range of applications.
- 【Modular Design】The heat exchange area and capacity can be adjusted according to specific requirements, meeting different process demands and application needs.
| Department | Unisex Adult |
|---|---|
| Item Weight | 6.61 pounds |
| Manufacturer | Orinthia |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | Orinthia |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
