5/8" Heim Joint Rod End Kit,Left and Right Hand Thread Heim Joint,4 Link .625" Wall Chromoly Joints Panhard Rod End Kit(5/8"-4Set)
4.3 (133 items)
Limited Time SaleUS$65.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215610114 | Release Date | 2026/04/12 | List Price | US$44.00 | Model Number | 215610114 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【5/8" heim joints Kit】4 RH & LH hand thread Heim set with Lock Nut Bushing Assembly,tube adapters for .790" id tube.Easily transform suspensions with ease using the heim joint rod end kit, designed for easy installation through welding and additional hardware, ensuring a seamless and effective mating process.
- 【Specification】The heim joint rod ends is with 5/8” shaft with 18tpi.5/8” bore hold is the strongest way to make this heim.Lock Nut: Thread: 5/8"-18. Fits Tube Size:1 1/4" OD. x .120" Wall.note: please confirm the size specification before purchasing.

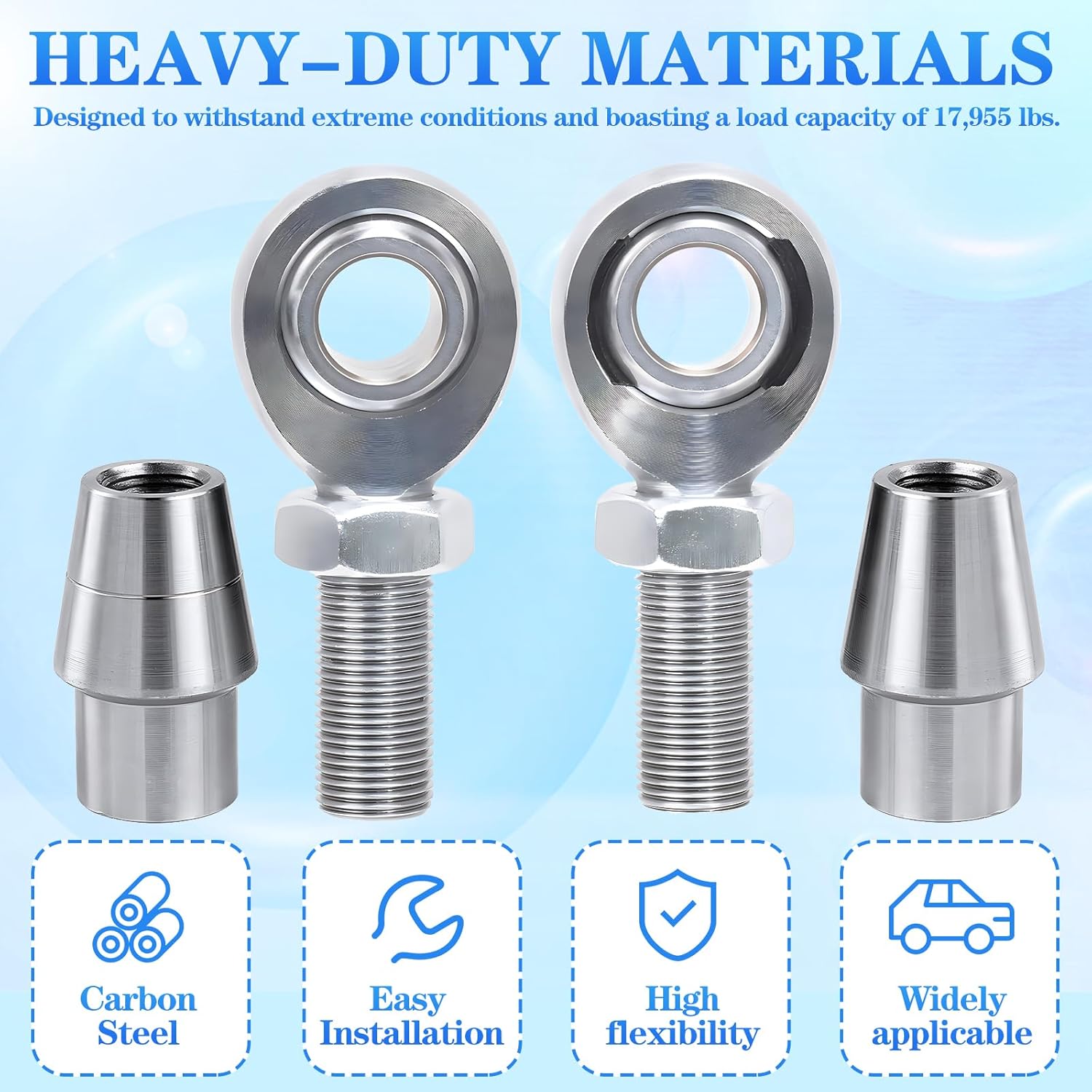

- 【Heavy-Duty Materials】The heim joints rod end kit is heat-treated C1045 steel, silver-zinc plated; and precision ground heat-treated for durability,designed to withstand extreme conditions and boasting a load capacity of 17,955 lbs.

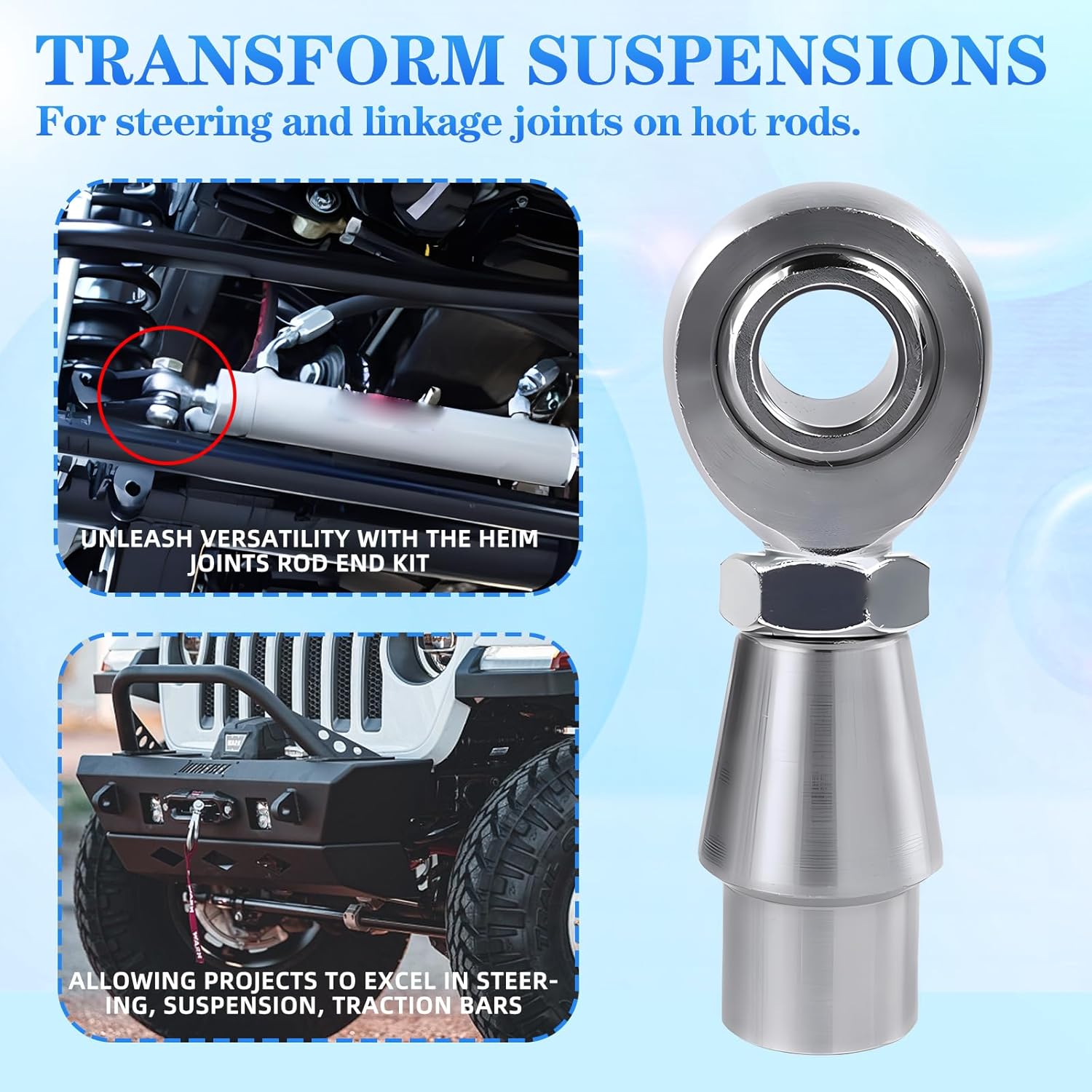

- 【Wide Applications】Our heim joints extreme load rating make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.provide exceptional performance for steering and linkage joints on hot rods.
- 【Easy to install】Our heim joints for 5/8" rod end can be welded with additional hardware for mating installation.The design allows for quick and hassle-free installation, saving time and effort during setup.
| Brand | YIFUOK |
|---|---|
| Model | YFIUR |
| Exterior | Chrome |
| Item Weight | 6.25 pounds |
| Manufacturer | YIFUOK |
| Item model number | 5/8inch-4Set |
| Package Dimensions | 6.77 x 5.35 x 2.64 inches |
| Manufacturer Part Number | 1089 |
