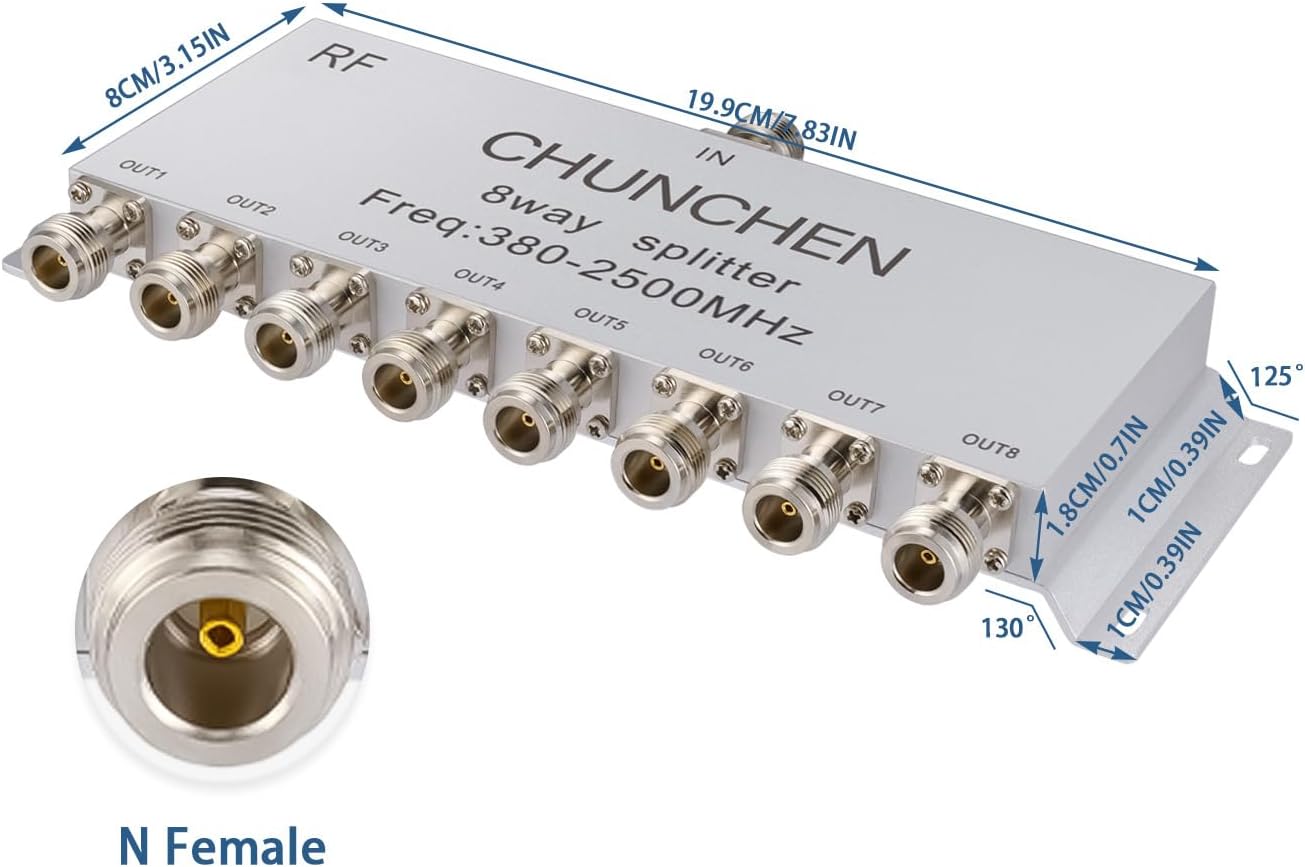

8 Way N Female Connector Power Splitter 50 Ohm Signal Splitter 380MHz-2500MHz Cable Signal Splitter 1 Input 8 Output for Antenna Cable

Product Details：Product name: N female connector 8 way signal splitter Connector port: 1 input and 8 output Output port type: 8 way Connector type(Input):N female Connector type(Output)*8: N female Product material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 380-2500Mhz Inputsertion loss (dB): 10.1-12.4Isolation (dB): ≤20 VSWR: ≥1.11; ≤1.74 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 23*12*3cm Package: 1 x N female 8 way power splitter Weight: 663.8 g

• Product name: N female 8 way power splitter 1 input 8 out;
• Connector port: 1 input and 8 output; Output port type: 8 way; Connector type(Input):N female; Connector type(Output)*8: N female; Product material(Body): Aluminum alloy; Connector material: Copper;
• Specification: Frequency range (GHz): 380-2500Mhz; Insertion loss (dB): 10.1-12.4; Isolation (dB): ≤20; VSWR: ≥1.11, ≤1.74; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 23*12*3cm;
• Applicaion: Provides 8 amplified N female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x N female 8 way signal splitter(Weight:663.8g).
