Boat Engine 688-W0001-02 688-W0001-01 688-W0001-00 688-W0001-A0 Power Head Gasket Kits for Yamaha Outboard Motor 75HP 85HP 90HP, fit Sierra 18-4415

flash sale iconLimited Time Sale
Until the end
19
53
43

US$32.93 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$21.96
quantity

Product details

Management number 212781343 Release Date 2026/04/06 List Price US$21.96 Model Number 212781343
Category
  • Engine: 688-W0001-02 688-W0001-01 688-W0001-00 688-W0001-A0 18-4415 9-64407
  • Replaces Part OEM Number#: E 75HP 85HP 90HP 688 model 2-stroke

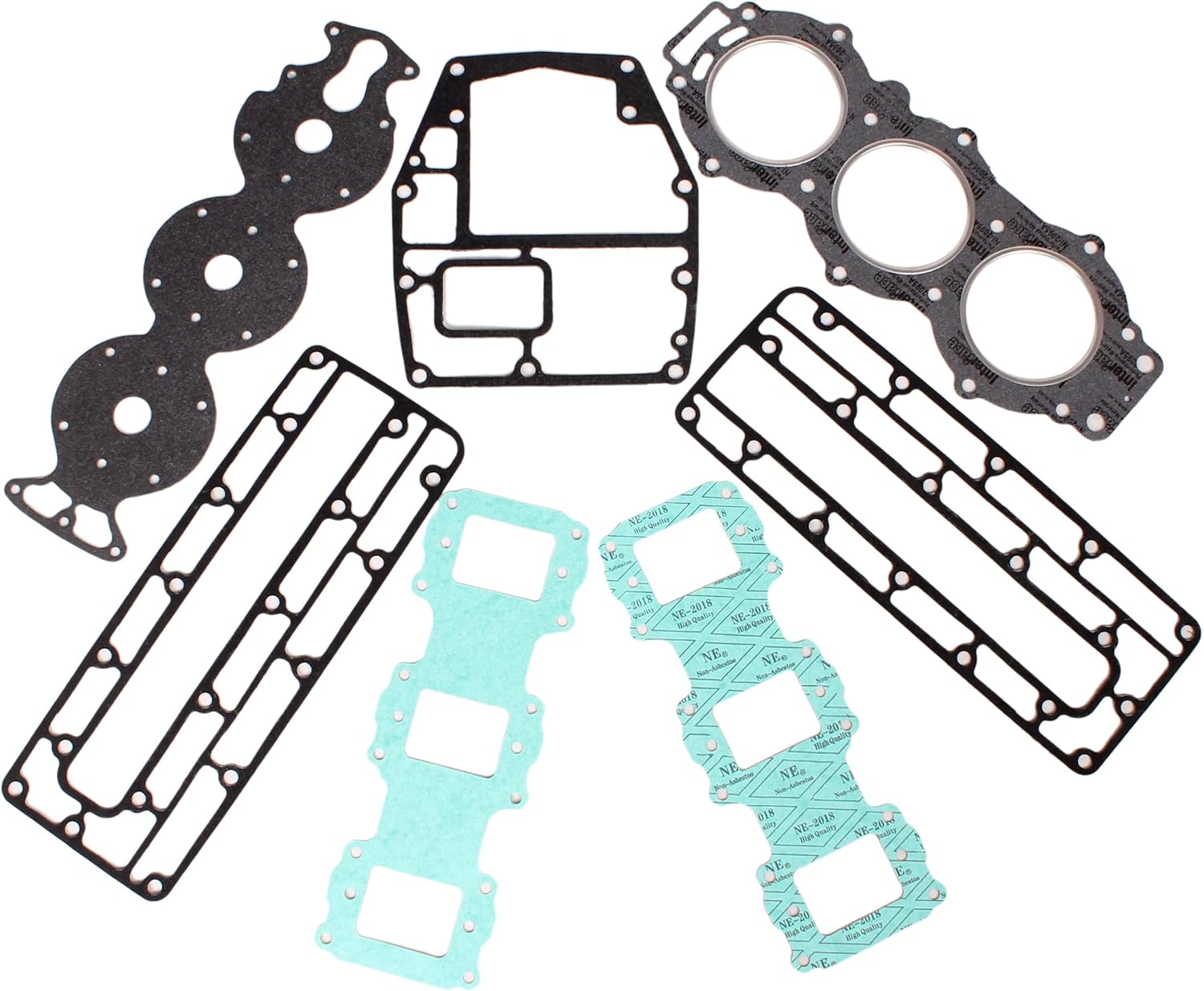

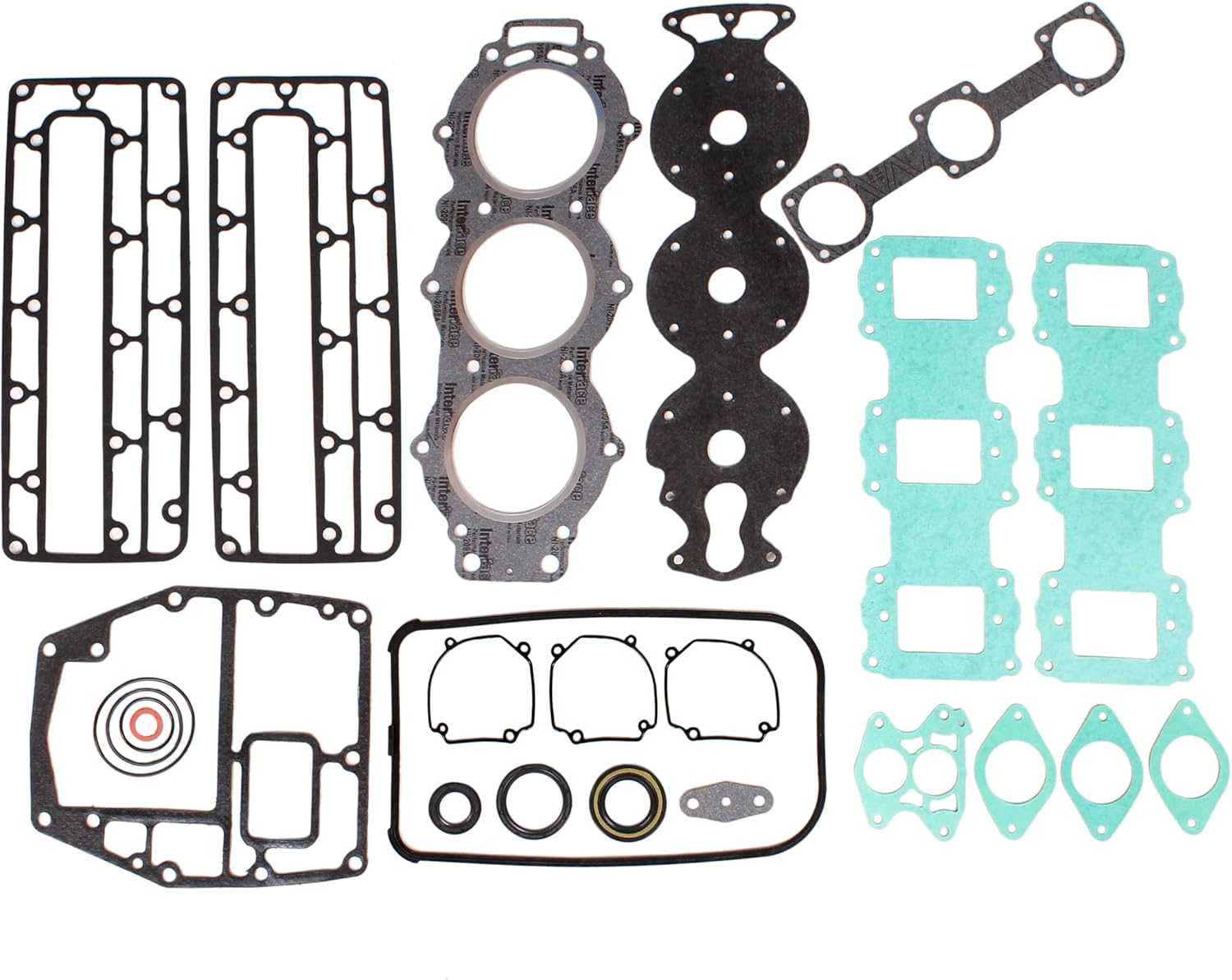

  • Kit contains the following parts available individually: 18-0840 Fuel Bowl Seal 676-14984-00-00 (qty 3), 18-3805 Head Gasket 688-11181-02-00, 18-0844 Thermostat Cover Gasket 688-12414-A1-00, 18-0846 Carburetor Mounting Gasket 688-14198-A1-00 (qty 3), 18-0847 Exhaust Cover Gasket 688-41112-A0-00 (qty 2), 18-0826 Drain Screw Gasket 90430-14115-00-00, 18-0767 Water Jacket Cover Gasket 688-11193-01-00, 18-0845 Intake Manifold Reed Plate Gasket 688-13621-A1-00 (qty 2) 18-7441 O-Ring 93210-62269-00.
  • If you are unsure, please provide your engine serial number.
Brand SouthMarine
Model Power Head Gasket Kits
Exterior Machined
Item Weight 12 ounces
Manufacturer SouthMarine
Item model number 688-W0001-02/01/00/A0 18-4415 9-64407
Package Dimensions 15.75 x 11.81 x 0.39 inches
Manufacturer Part Number 688-W0001-02/01/00/A0 18-4415 9-64407
