ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet Port, 240MHz Dual Core Processor, Onboard Type-C Port & TF Card Slot, WiFi & BLE & Ethernet Communication, with POE Module + OV2640 Camera
5.0 (105 items)
Limited Time SaleUS$20.15 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209076768 | Release Date | 2026/03/29 | List Price | US$13.44 | Model Number | 209076768 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

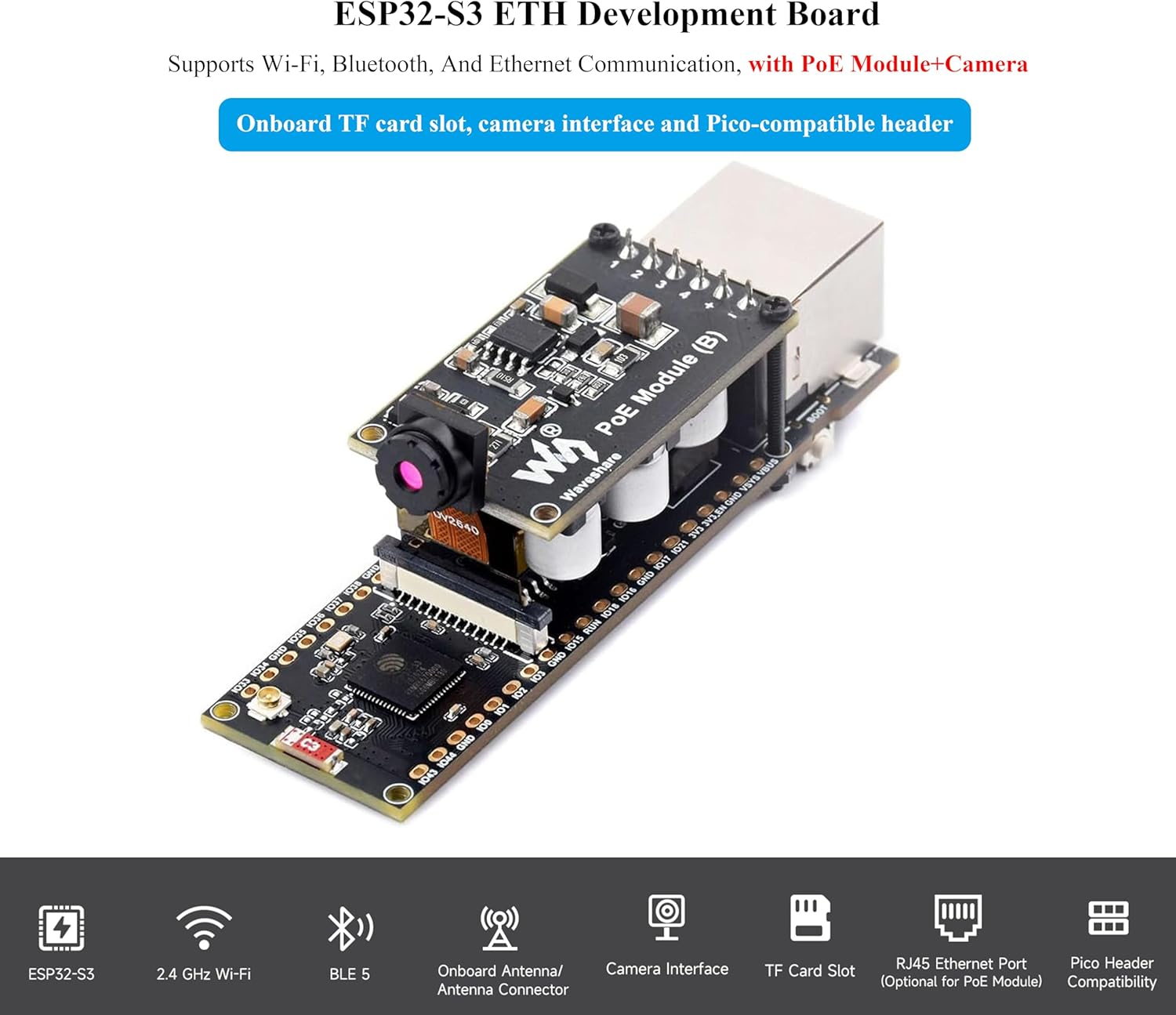

- There are Four Versions. This is ETH development board + OV2640 camera + PoE module version. This is an ETH development board based on ESP32-S3R8 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, supports Wi-Fi and Bluetooth communication, with wired Ethernet connectivity, with PoE function.
- This is an ETH development board based on ESP32-S3R8 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, supports Wi-Fi and Bluetooth communication, with wired Ethernet connectivity, with PoE function. Supports PoE Power Supply. Provides Both Network Connection And Power Supply In Only One Ethernet Cable.
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna. Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface.
- Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image capture, video monitoring and other applications to meet different needs. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs.
- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard TF card slot for external TF card storage of pictures or files.
- Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.
- Comes with Online Development Resources /User Manual: bit.ly/4eYL1km
| Brand | UeeKKoo |
|---|---|
| CPU Model | Others |
| Model Name | ESP32-S3 ETH Development Board |
| Manufacturer | UeeKKoo |
| Model Number | ETH board + PoE module+OV2640 camera |
| BuiltIn Media | 40PIN male pinheader(black) x1, ESP32-S3-ETH x1, OV2640 camera x1, PoE module x1, Screws pack x1 |
| Mfr Part Number | ETH board + PoE module+OV2640 camera |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi Pico, Raspberry Pi Pico HATs |
| RAM Memory Installed | 0.01 GB |
| Warranty Description | Technical Support is provided |
| RAM Memory Technology | SRAM |
| Connectivity Technology | Bluetooth, Ethernet, Wi-Fi |
| Memory Storage Capacity | 16 MB |
