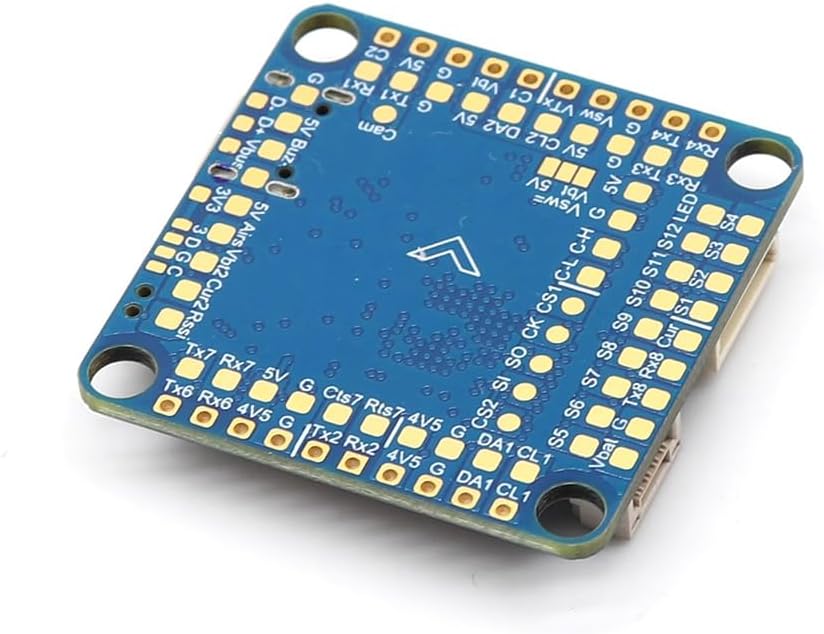

H743 SLIM V3 Flight Controller 8S FPV Freestyle Drone Compatible with ArduPilot/BetaFlight/INAV for Quadcopters

FC Specifications MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash ICM:42688P Baro: Infineon DPS368 (I2C2) OSD: AT7456E (SPI2) Blackbox: MicroSD card socket (SDIO) 7x Uarts (1,2,3,4,6,7,8) with built-in inversion. 13x PWM outputs(including “LED” pad) 2x I2C 1x CAN 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2) 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) 1x SPI3 breakout USB Type-C(USB2.0) 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4) 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G) Dual Camera Inputs switch 5V/Vbat filtered power ON/OFF switch DJI FPV OSD is supported by any spare UART Power Vbat Input: 6~36V (2~8S LiPo) BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.200mA No Current Sensor built-in ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K) Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot FC Firmware ArduPilot(ChiBiOS): MATEKH743 BetaFlight: MATEKH743 INAV: MATEKH743 Physical Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 36 x 36 x 5 mm Weight: 7g Including 1x H743-SLIM 4x Silicon grommets M4 to M3 1x JST-SH1.0_8pin cable, 5cm 1x JST-SH1.0_8pin connectors 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm

• FC Firmware ArduPilot (ChiBiOS): MATEKH743 BetaFlight: MATEKH743 INAV: MATEKH743

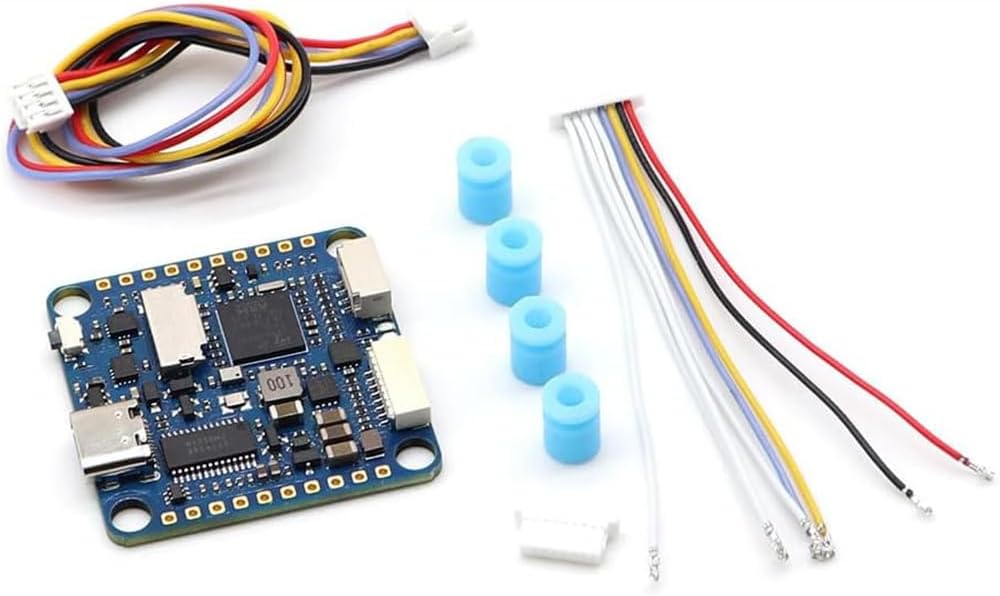

• Including 1x H743-SLIM 4x Silicon grommets M4 to M3 1x JST-SH1.0_8pin cable, 5cm 1x JST-SH1.0_8pin connectors 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
• Versatile firmware compatibility: Supports ArduPilot, BetaFlight, and INAV, adapting to both professional aerial tasks and FPV racing/acrobatics needs.
• 8S LiPo input (6~36V) with a 5V/2A BEC ensures reliable power supply for peripherals, while dual camera input switching enhances FPV shooting flexibility.
• Compact and lightweight design (36x36x5mm, 7g) minimizes air resistance, ideal for high-speed freestyle flights without compromising structural balance.
