HCDC HD062 8 Output DC Power Distribution Block Module for 15/30/45A Connects
5.0 (149 items)
Limited Time SaleUntil the end
13
08
04
US$27.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$18.00
Product details
| Management number | 215151287 | Release Date | 2026/04/12 | List Price | US$18.00 | Model Number | 215151287 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- HCDC HD062 8 output ports DC power distribution block module for 15/30/45A power pole connectors.
- Maximum voltag: 60V. Maximum current (input or total output): 45 Amp.
- Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. Detachable screw mount brackets, supports top or right angle mount.

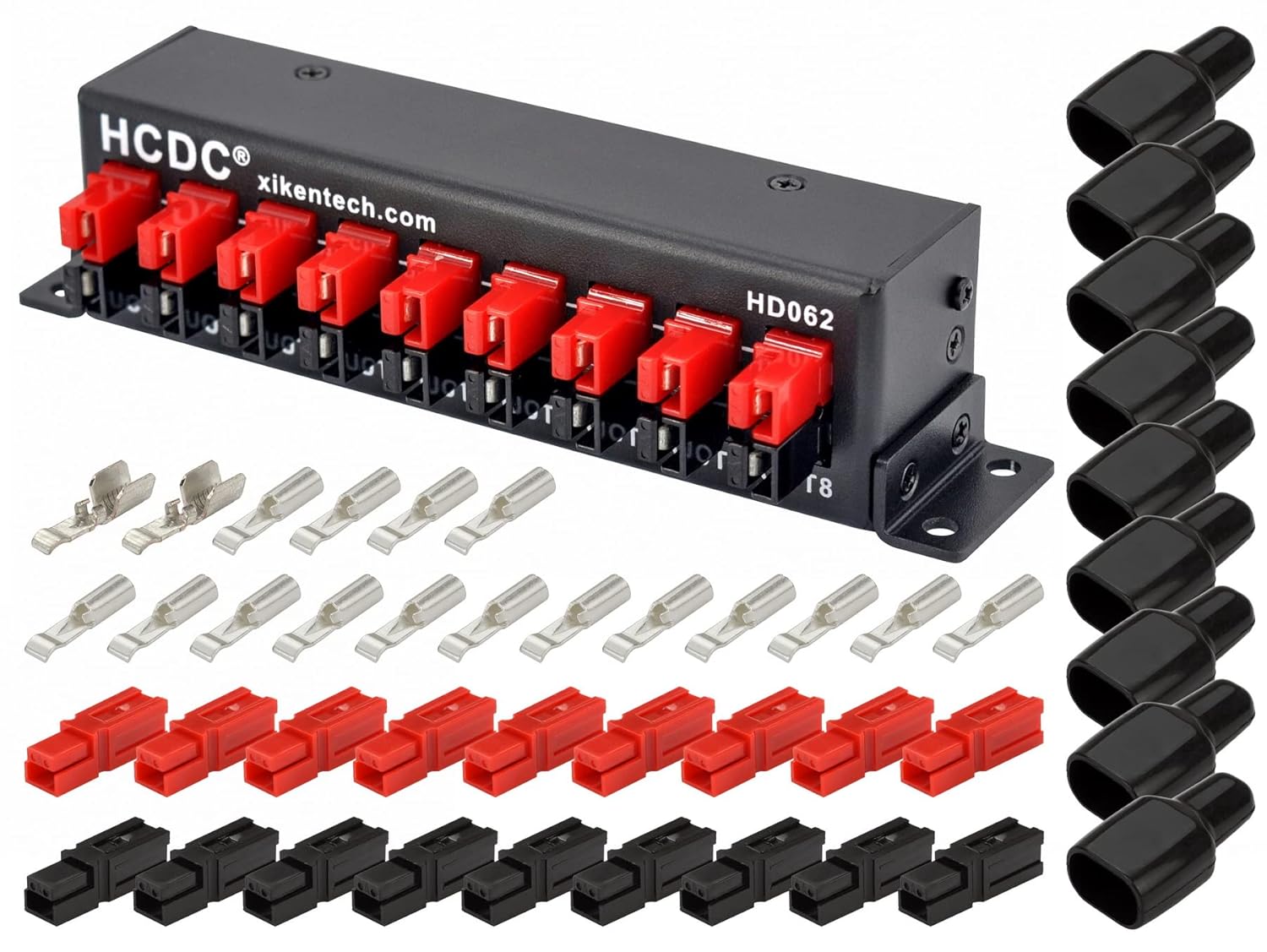

- Packing list: 1x HD062 distribution module, 9 black power pole housings, 9 red power pole housings, 9 PVC cover flame retardant sleeve, 16 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
- Overall Dimensions(not include external plugs): L 140mm x W 39.2mm x H 33mm / 5.51" x 1.54" x 1.30". Net weight(not include external plugs): 126g.
| Gauge | 12.0 |
|---|---|
| Model | HD062 |
| Voltage | 60 Volts |
| Brand Name | HCDC |
| Part Number | HD062 |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Aluminum |
| Mounting Type | Pole Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps, 45 Amps |
| Number Of Poles | 8 |
| Centerline Length | 140 Millimeters |
| Number Of Contacts | 18 |
| Included Components | HD062 Distribution Module |
| Number of Positions | 8 |
| Item Dimensions W x H | 5.51"W x 1.3"H |
