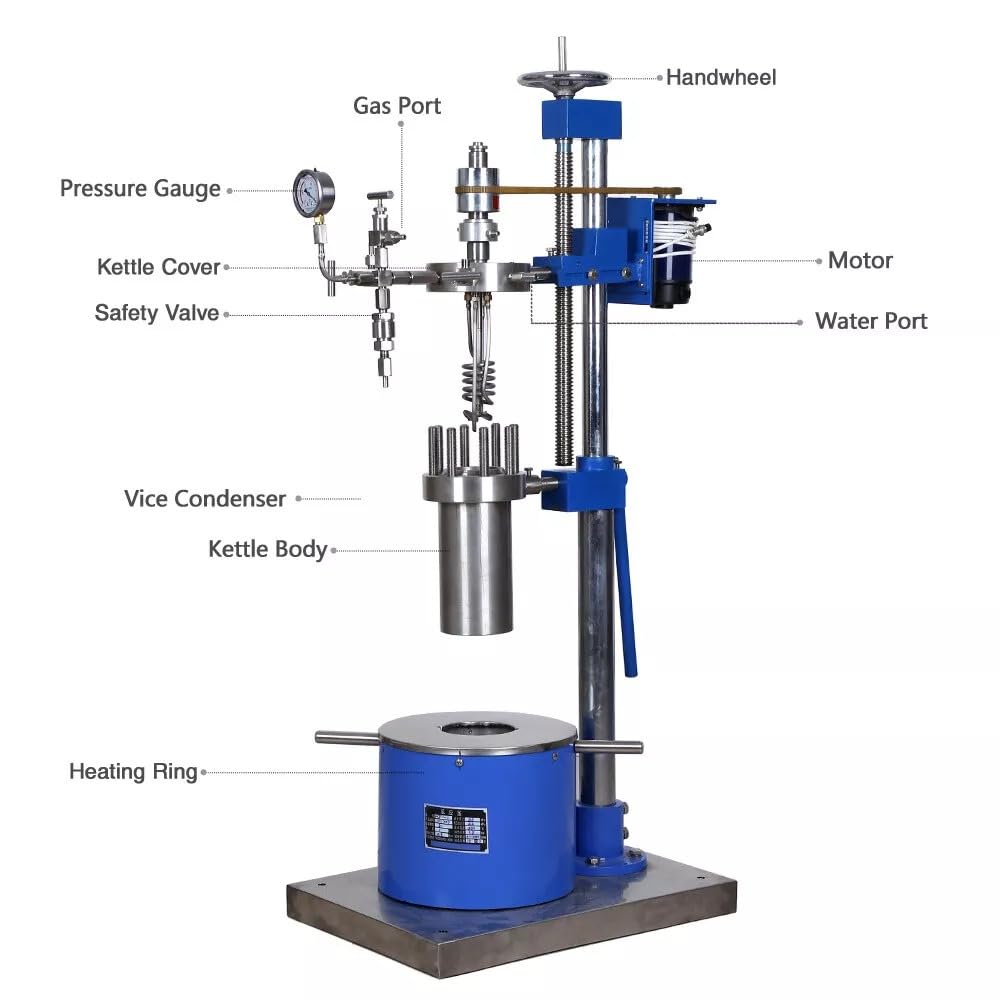

HNZXIB Heating Temperature Pressure Reactor Autoclave Vesse is Mainly Used for Chemical Reaction Experiments Under High Pressure and High Temperature. (FCF-3)

FCF series lab magnetic stirred autoclave is a stirring and reacting device, which is used for kinds of chemical materials which are Gas-liquid, liquid-liquid, liquid -solid or gas-liquid-solid three-phase to reactand stir fully under the high pressure, vacuum, high temperature, up to strength mass and heat transfer process. Static sealing structure, Magnetic coupling connection between the agitator and motor drive. Static seal instead of dynamic seals, and thoroughly mixing exchange leakage, the entire media and mixing the components to work completely in the state of absolute seal.We design and manufacture high pressure stirred autoclave, pressure upto 22Mpa and temperatures up to 350°C in material of SS-304/304L.High-pressure reactor autoclave is suitable for flammable, explosive, highly toxic, precious media and chemical media of strong penetration to stir. It is the best no-leak response for petroleum, chemical, organic synthesis, polymer, food, and another process to vulcanize, fluorite, oxidize.

• Laboratory high pressure stirring reactor is made of 304 stainless steel (SS316 titanium alloy and Hastelloy can be customized, can also add PTFE liner), working pressure is 22Mpa, set temperature is 350℃, manual lifting, voltage 110V/60Hz.
• Mainly adopts a static sealing structure, there is a magnetic coupling connecting the agitator and motor.
• Due to its non-contact transmission torque, with static seal replaced the dynamic seal, can completely solve the leakage problem in stirring, makes whole media and mixing parts completely in the absolute sealed state in working.
• Suitable for all kinds of stirring reactions such as other chemical mediums of strong penetration which is the ideal non-leak reaction equipment for vulcanization, fluorination, oxidation in petroleum, chemical, organic synthesis, polymerization of polymer materials, food, and other technology.
• High-pressure reactor autoclave is suitable for flammable, explosive, highly toxic, precious media and chemical media of strong penetration to stir. It is the best no-leak response for petroleum, chemical, organic synthesis, polymer, food, and another process to vulcanize, fluorite, oxidize.
