Huanyu Portable Aluminum Alloys Hardness Tester W-20a, Thickness 0.4-13,Inner Diameter: 10mm

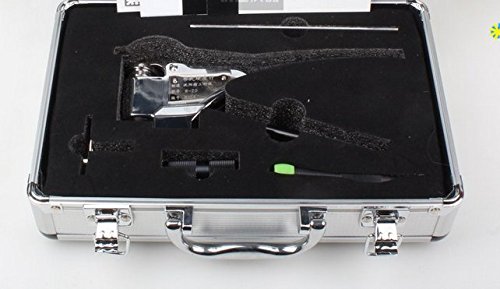

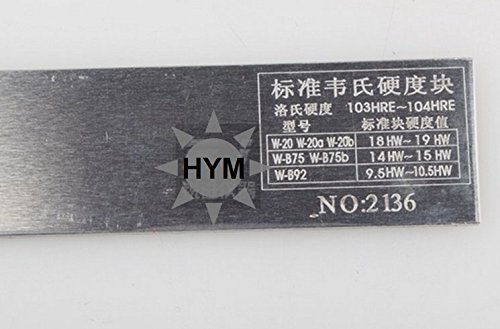

Product Description 1. Hardness Tester is a portable instrument which can perform on-site hardness testing on soft materials.By a quick and easy test,the hardness value can be read out directly with a simple clamp. 2.Used to check the result of heat treatment and determine if the mechanical performance of the work piece is acceptable. 3.A test can be completed by 1 press. 4.Model W-20 equivalent to US Model B Tester. 5.The hardness value can be converted into the common-used HRE, HRF, HV. Application: 1.Used to ascertain if the work piece has been heat-treated and check the effect of heat treatment. 2.Used to ascertain if the work piece is made and processed by improper alloys. 3.Used for testing the work pieces with overlength, overweight or assemblies. 4.Used for production inspection,acceptance inspection and quality monitoring and inspection. Technical Datas Measuring Scope:0-20HW Accuracy:0.5HW Application Range:aluminum alloy Hardness Range:25-110HRE, 58-131HRV Specimen Dimension(mm):Thickness 0.4-13 Inner diameter>10 Standard Package: 1 Tester 1 Standard hardness block 1 Spare indenter 1 Calibration wrench 1 Small screwdriver 1 Case Weight:0.5kg

• Measuring Scope: 0-20HW(25-110 HRE)
• Resolution: 0.5HW
• Specimen Dimension(mm): Thickness 0.4-13 Inner diameter>10
• By a quick and easy test,the hardness value can be read out directly with a simple clamp.
• Used to check the result of heat treatment and determine if the mechanical performace of the workpiece is acceptable.
