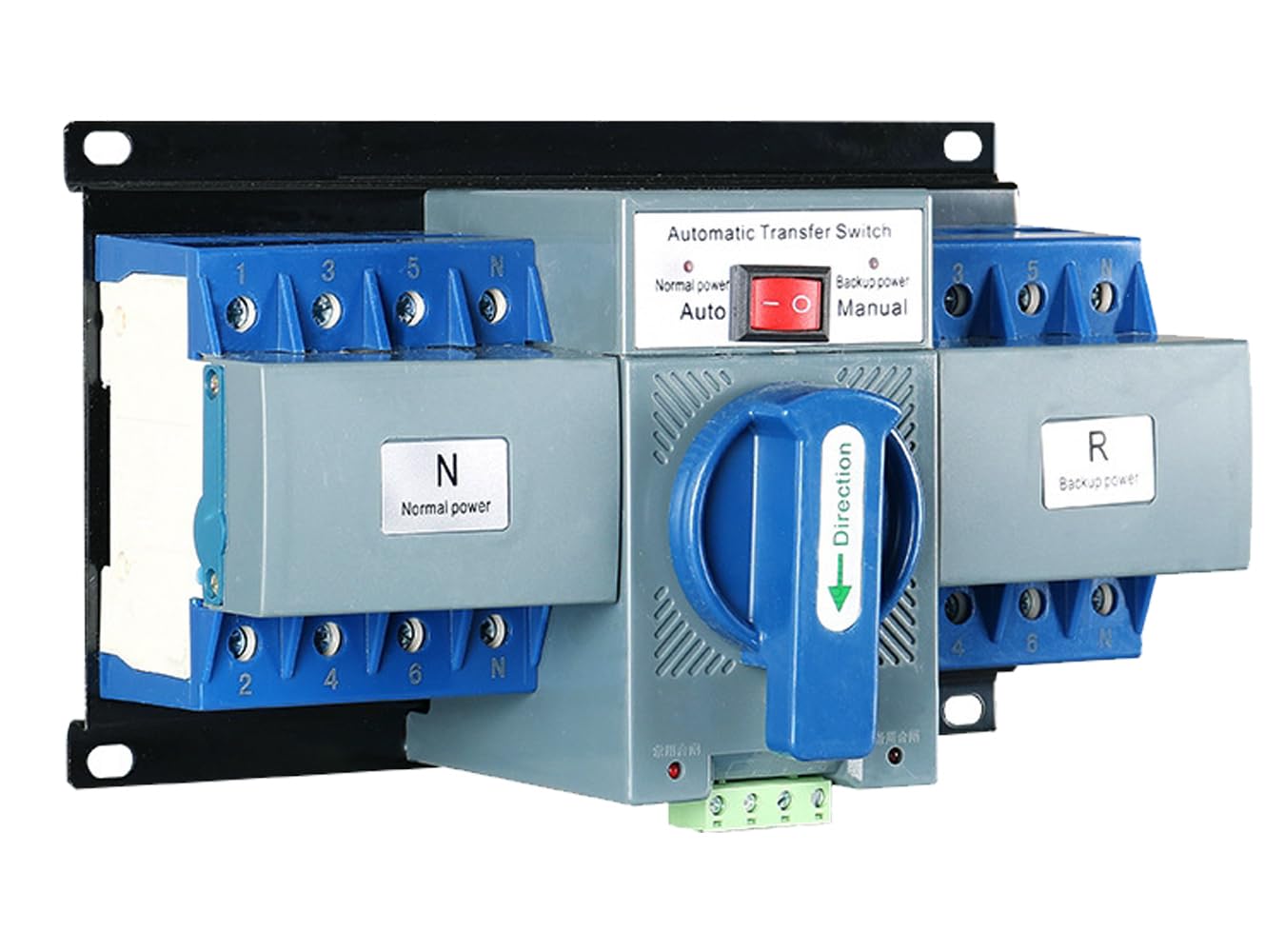

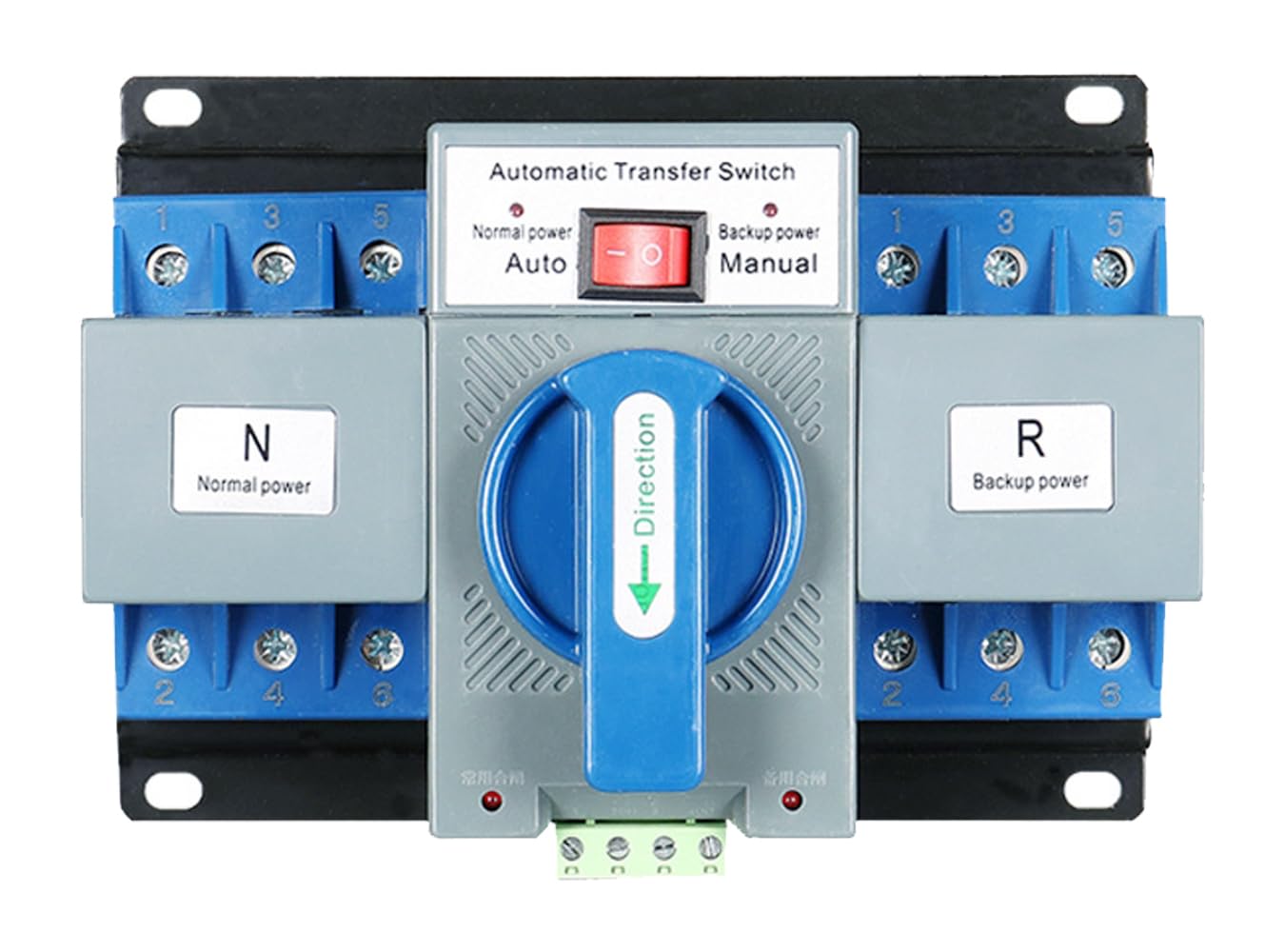

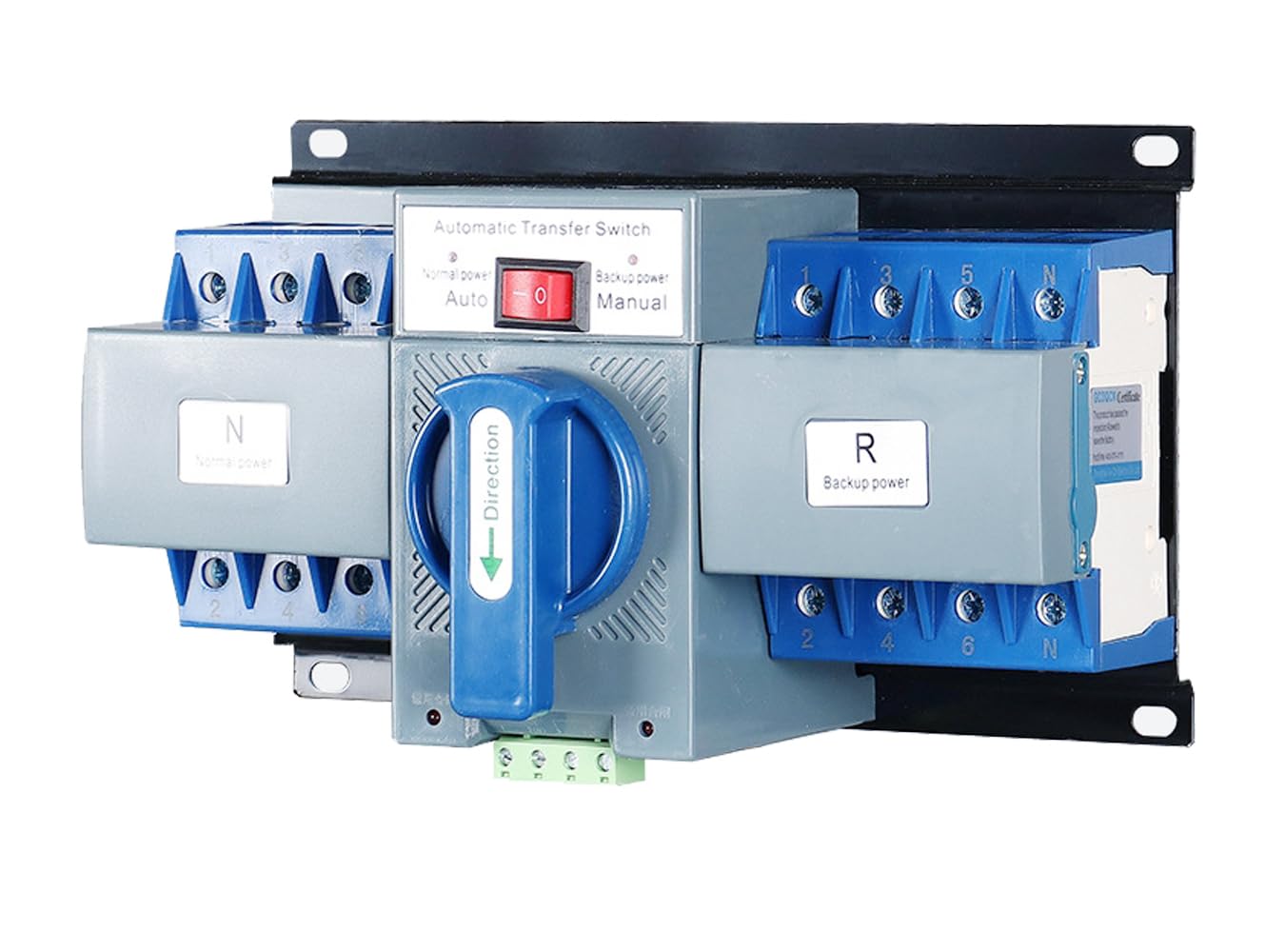

JONASC AC220V 63A 4P Dual Power Automatic Transfer Switch Generator Changeover Switch 50Hz/60Hz
4.0 (106 items)
Limited Time SaleUntil the end
23
56
57
US$33.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$22.40
Product details
| Management number | 210751632 | Release Date | 2026/04/02 | List Price | US$22.40 | Model Number | 210751632 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Technical Parameter: Line Voltage: AC220V, Line Current: 6A-63A, Operating Frequency: 50HZ/60HZ, Conversion Time: 2S or so; Installation Dimension: 128mm*122mm hole: M6
- Automatic & Manual: This automatic switch not only support auto mode, also can be operated by manual button, simple operation and reliable performance. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits
- Protection Function: The switch supports multiple protection functions, including short circuit, overload, phase loss, and undervoltage protection
- Easy installation: Reasonable structure, small size, equipped with protective cover, power supply is easy to install and reliable (with Electronic Instruction Manual)
- Wide application: This switch can be used for home and public places, especially suitable for office buildings and public places which requiring fire fighting
| UPC | 752848404303 |
|---|---|
| Color | ATS-220V-63A-4P |
| Model | ATS-220V-4P |
| Wattage | 15120 watts |
| Terminal | Through Hole |
| Brand Name | JONAS C |
| Unit Count | 1.0 Count |
| Switch Type | Rotary |
| Circuit Type | 4-way |
| Contact Type | Normally Open |
| Manufacturer | JONAS C |
| Material Type | Metal, Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 63 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 8.66 x 5.43 x 4.57 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 240 Volts |
| Specification Met | CCC |
| Included Components | ON |
| Number of Positions | 4 |
| Lower Temperature Rating | 140 Degrees Fahrenheit |
| International Protection Rating | IP03 |
