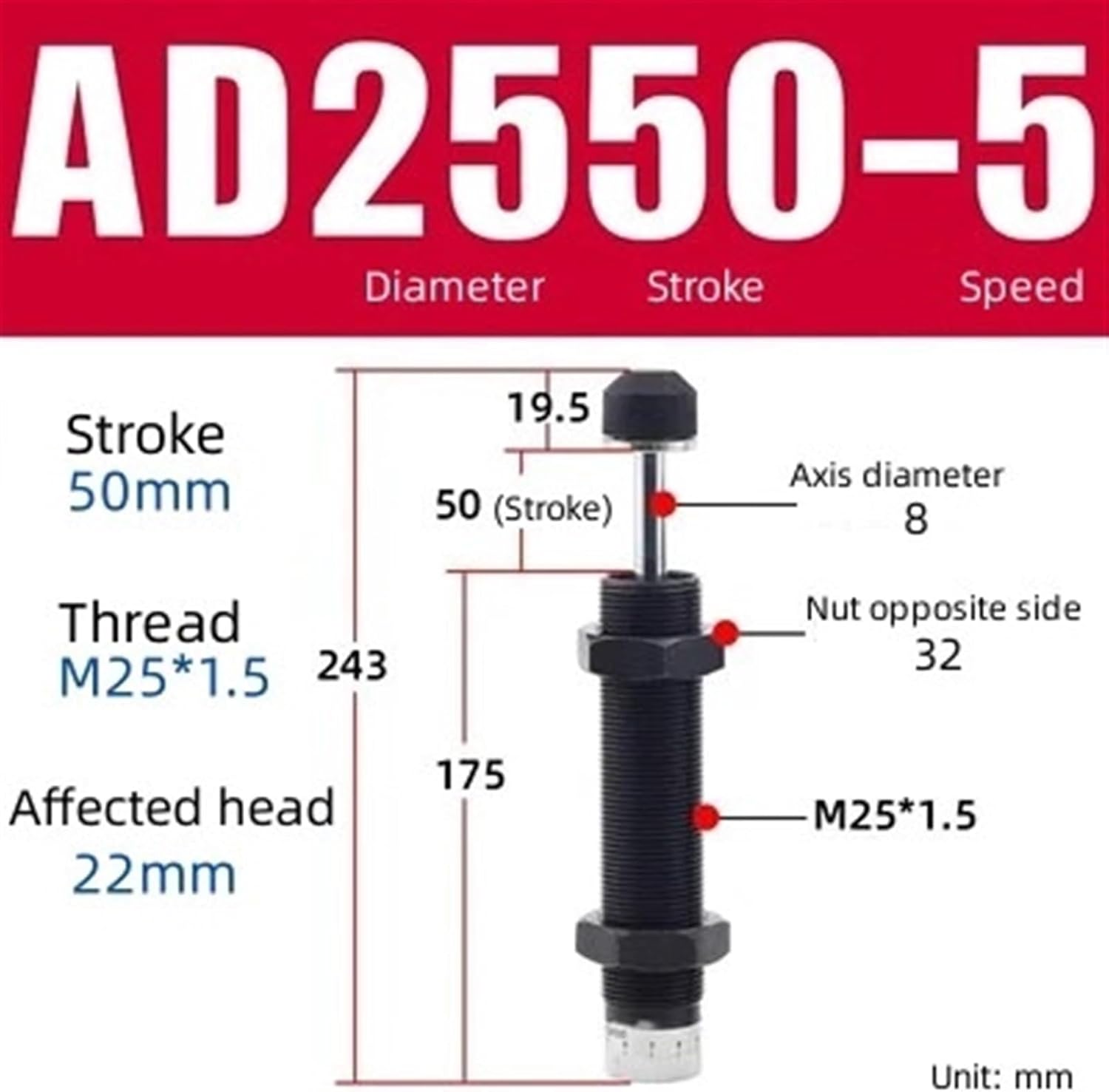

Oil Pressure Hydraulic Adjustable Buffer AD1425/1410/1412/1612/2020/2525/3650/4250 Pneumatic Air Cylinder Shock Absorber Damper 1Pcs(AD2550-5)

Pressure DampersNameHydraulic bufferModelAD adjustable Working temperature-10~80 MaterialAluminum alloyWorking environmentAutomated machineryPackage1Pcs/packProduct Model AnalysisBest adjustment rangeStrokeDiameterAC: Non adjustableAD: Adjustable pressureThread stroke measurement methodA: Represented by the diameter of the screw thread ;for example, the thread diameter of AC2025 is M20mmPress all the pistons out of measurement data BThe value of data B obtained is the stroke SpringSliding rodSpring baseHexagonal nutHigh carbon steel outer pipeNylon sound-absorbing and buffering head Working principle of the productReturn hole oil/Oil drain hole/spring/Pressure/storage sponge/oil seal/Affected head/Impact/force/Hydraulic oil/Check valve/Outer tube/Dust ring/piston rodSoundproof sleeve/Inner tube/piston/bearingWorking principle:When the piston rod is impacted, the piston rod drives the piston to compress the internal hydraulic oil. After the hydraulic oil is compressed, it is discharged one by one from the oil discharge holes in the inner pipe. Part of the discharged hydraulic oil flows into the pipe through the return hole, and the other part enters the pressure storage spongeWhen the external force disappears, the spring quickly pushes the piston rod, forming a negative pressure inside the inner tube. The check valve automatically opens, and hydraulic oil quickly returns to the inner tube through the open check valve. The buffer returns to its initial state and waits for the next action.Cylinder slow stop without reboundOil Pressure Hydraulic Adjustable Buffer AD1425/1410/1412/1612/2020/2525/3650/4250 Pneumatic Air Cylinder Shock Absorber Damper Type : CylinderModel Number : Hydraulic Adjustable Buffer Name : Air Cylinder Shock AbsorberType : AD AdjustableMaterial
