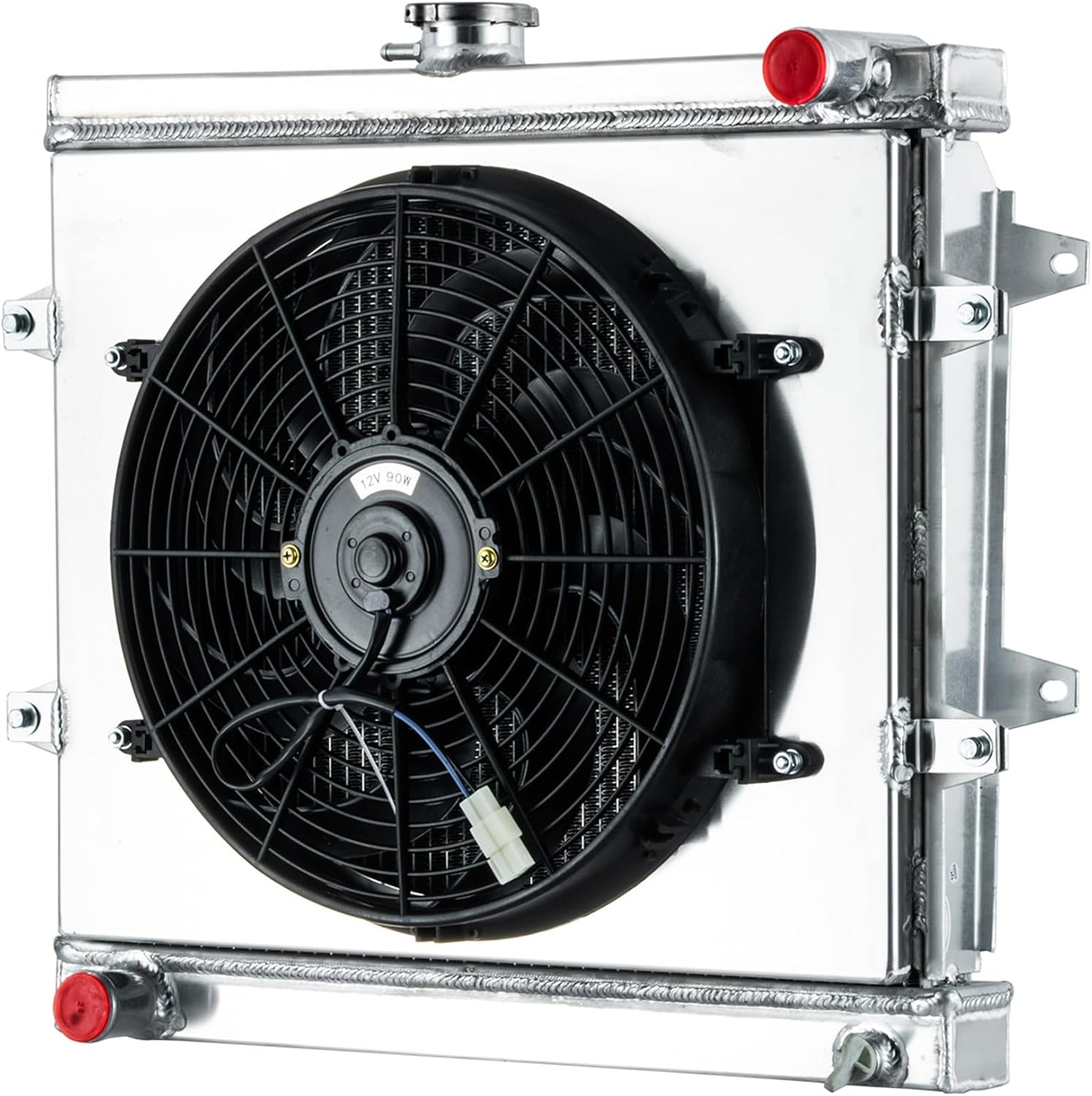

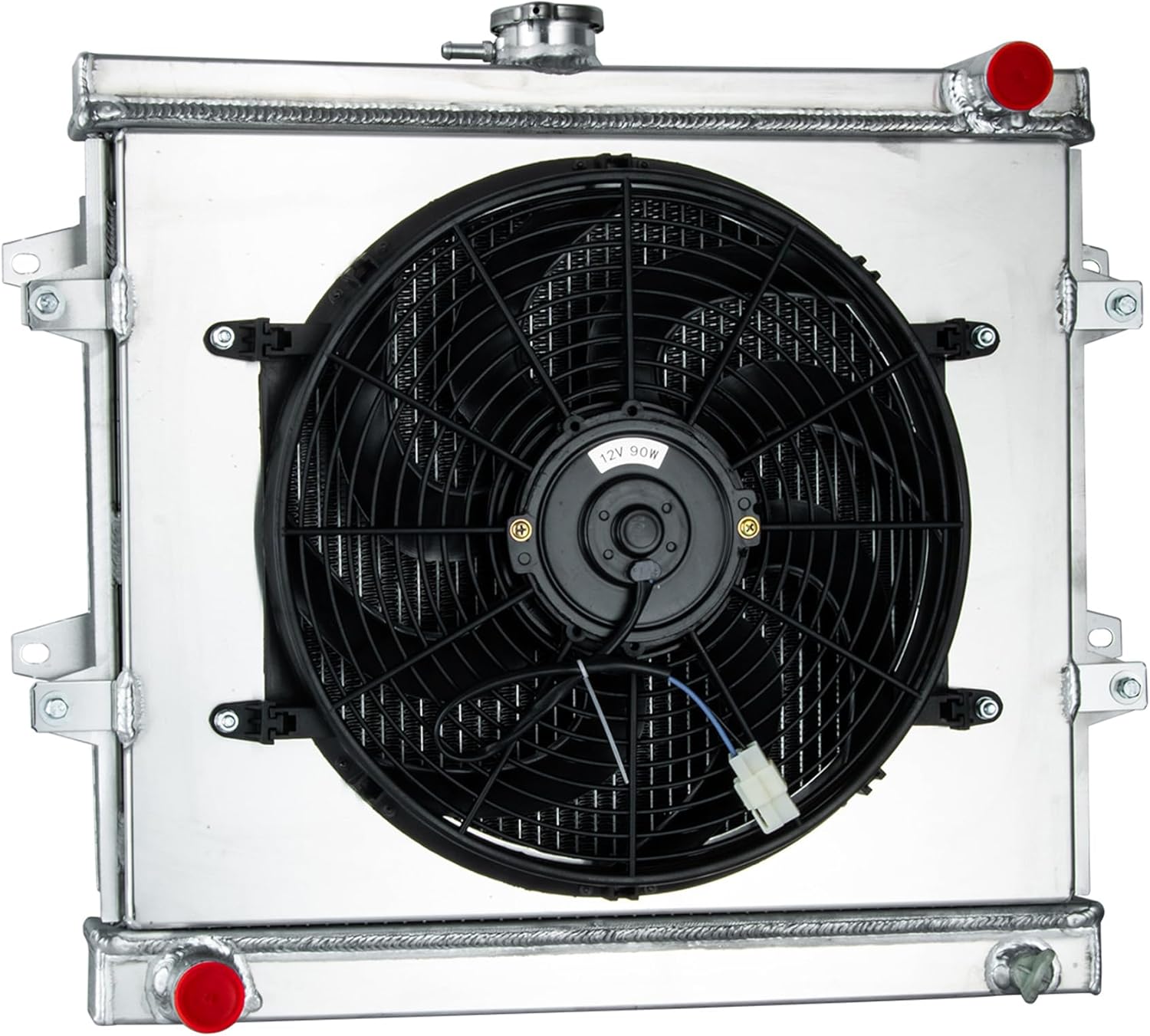

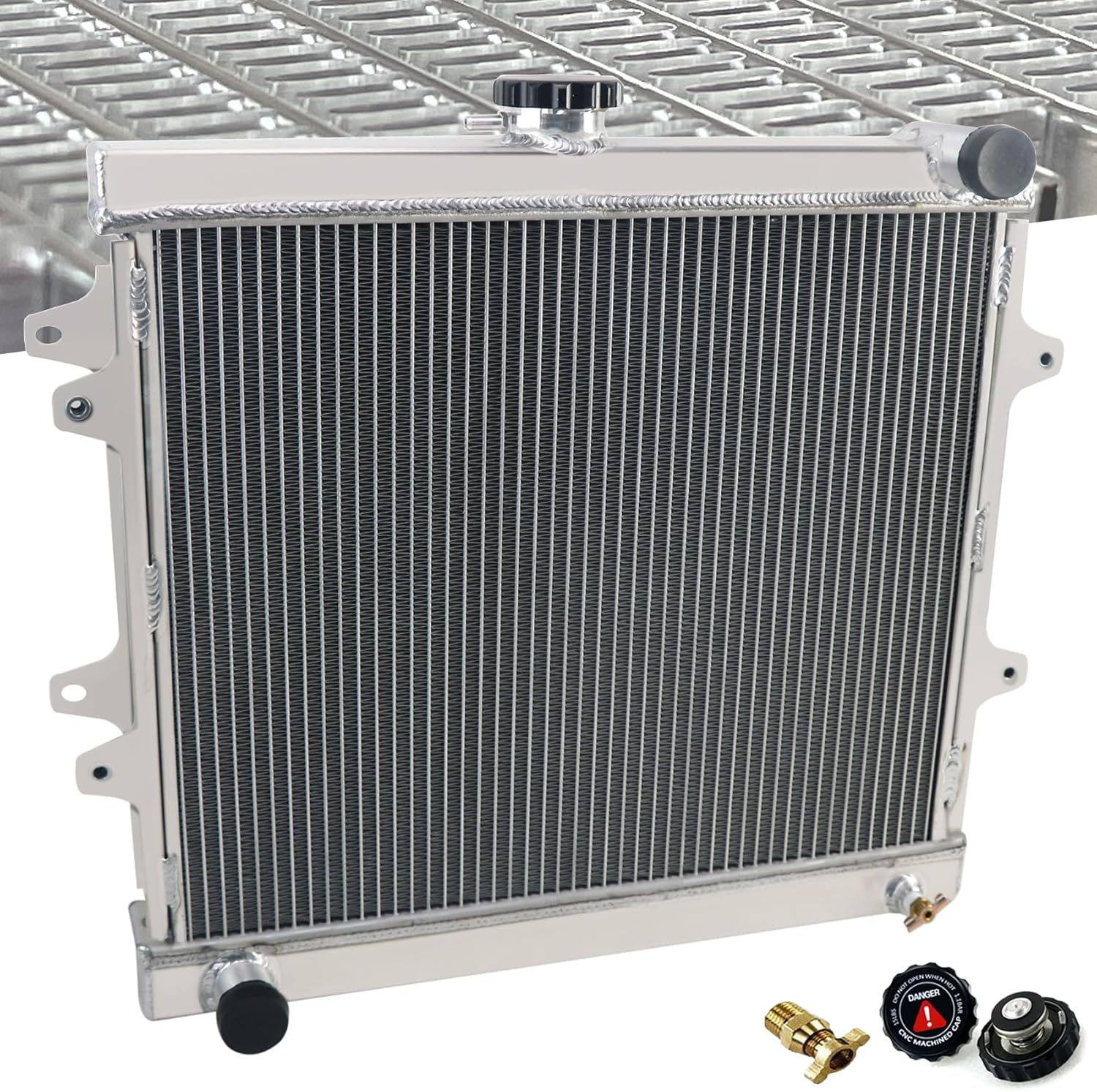

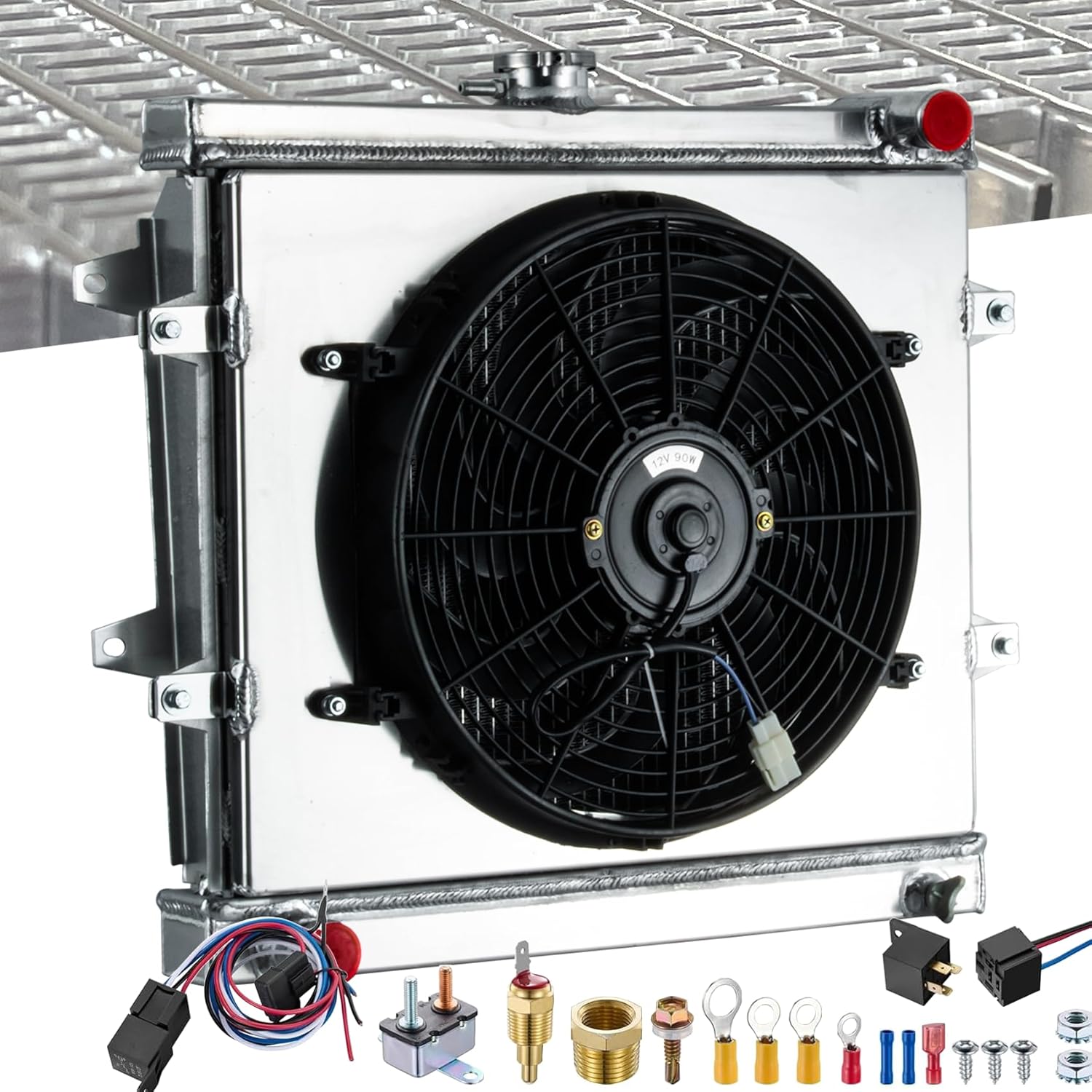

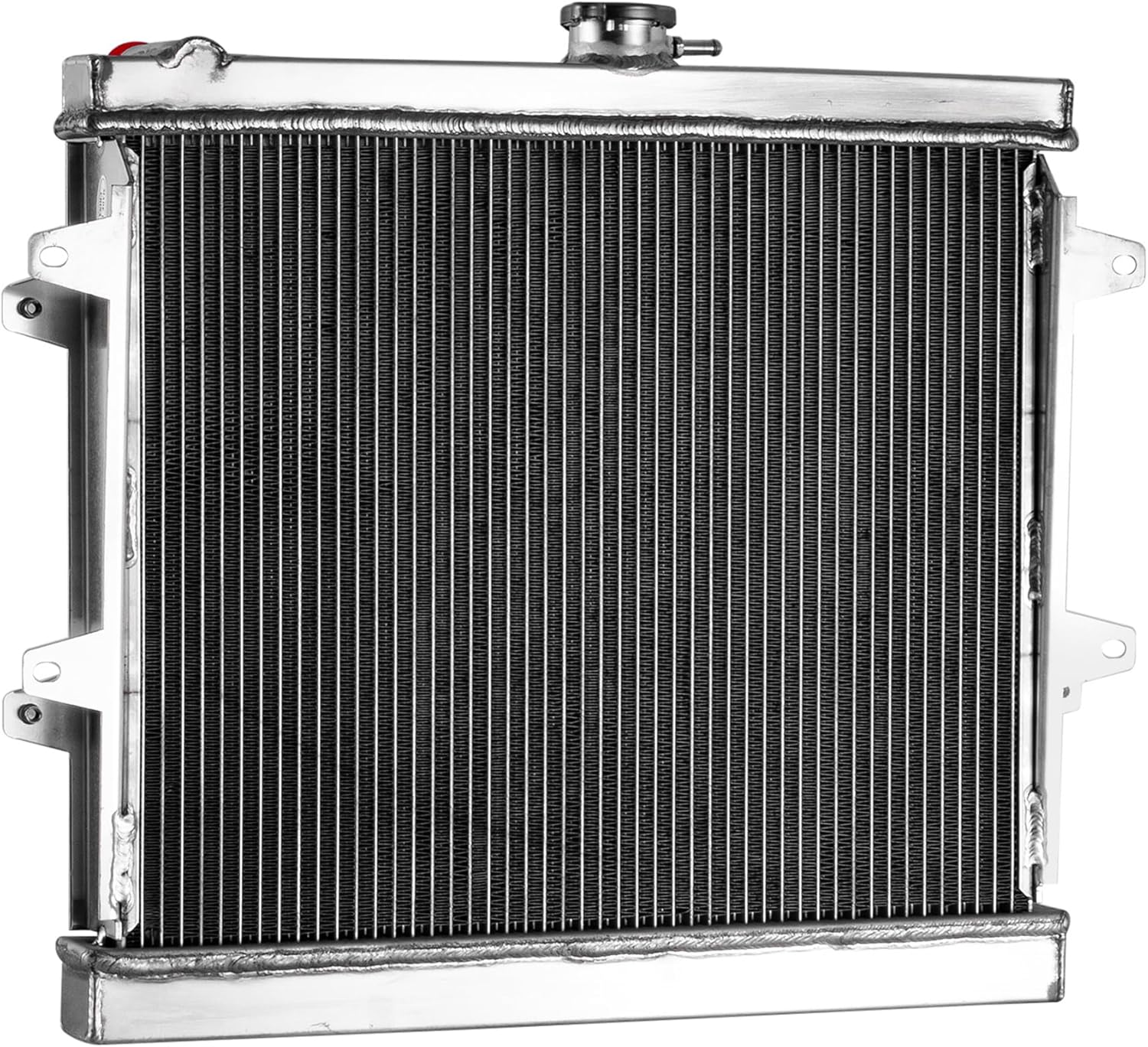

Radiator for 1984-1995 Toyota 4Runner Pickup 2.4L L4 Gas Diesel, 3 Row Full Aluminium Radiator + 14 Inch Fan + Shroud Kit

Radiator Specifics: Condition: 100% Brand New Material: Aircraft AA5052 grade aluminum tank & core Row: 3 Row Core Size: 15.7'' x 19.2'' x 1.73'' Thickness Overall Size: 23.4''x 20.5'' x 6.3'' T Inlet Diameter: 1.34 inch Passenger Side Outlet Diameter: 1.34 inch Driver Side Transmission Oil Cooler: Not Included OEM Style Brass Petcock Drain CNC Machined Filler Neck and Cap Fan Spec: Maximum Fan CFM: 2200±200 FAN Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1992-1995 Toyota 4Runner SR5 L4 2.4L 1984-1995 Toyota Pickup Base L4 2.4L 1984-1995 Toyota Pickup DLX L4 2.4L 1986-1987 Toyota Pickup LN55 DLX L4 2.4L 1987 Toyota Pickup LN67 L4 2.4L 1986 Toyota Pickup LN76 L4 2.4L 1993 Toyota Pickup RN02 L4 2.4L 1985 Toyota Pickup RN60 L4 2.4L 1986-1987 Toyota Pickup RN63 L4 2.4L 1984-1990 Toyota Pickup SR5 L4 2.4L PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Please Notes: HKAUTOPART offering a brand new professional Aluminum Radiator at an best price. We warranty that all our products are made of the best materials and advanced manufacture technique.We also offer you 100% risk-free satisfaction guarantee to let you buy with confidence; If you are not satisfied with the quality of the product, please contact us in time, we will fully-refund you after item returned. If you have any problem(Before payment or after payment), please feel free to contact us via email. We will try our best to solve your problem as soon as possible. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

• Core Size: 15.7'' x 19.2'' x 1.73'' Thickness, Overall Size: 23.4''x 20.5'' x 6.3'' T
• Inlet Diameter: 1.34 inch Passenger Side, Outlet Diameter: 1.34 inch Driver Side
• Made of High Quality Full AA5052 Aircraft Aluminum Construction
• Shroud fan provides protection and extra heat heat dissipation for the radiator
• Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
