SolaMr 60A PWM Solar Charge Controller 12V/24V/36V/48V Intelligent Regulator Auto Paremeter Adjustable with LCD Display

Features: ▶Simple button operation ▶Adjustable charging and discharging control parameters ▶Various load working modes ▶Lead-acid battery and lithium battery charge and discharge control product features ▶Intelligent 3-stage PWM charging mode▶With 1 / 2 5V / 2A USB interface (for 10A / 20A / 30A / 40A) ▶Lead-acid battery and lithium battery charge and discharge control ▶Battery over-discharge / over-voltage / under-voltage protection ▶Load Overcurrent / short circuit protection ▶Solar panel / battery reverse connection protection ▶Battery reverse discharge protection Details: Rated Current：60A Working temperature：-20 °C ~50 °C Storage temperature：-30 °C ~70 °C Working humidity：10%~90%，no condensation Waterproof：IP30 Package List: 1 x Solar Panels Battery Charge Controller 1 x User Manual

• ✦This advanced PWM controller, a sophisticated solar charge controller, features an LCD display with backlight to show charge/discharge statistics. It automatically identifies 12/24/36/48V systems and provides charge voltage temperature compensation. Capable of starting from a solar panel even with a zero-voltage battery, it offers optional remote communication monitoring and an inverted light control mode (dusk-on/dawn-off) for efficient energy management.
• ✦This advanced RV solar charge controller is a versatile charge controller featuring four load working modes: 24H common controller mode; 1~23H light control delay mode; 0 pure light control mode; and CH reverse phase light control mode, all in a compact design for reliable power management.

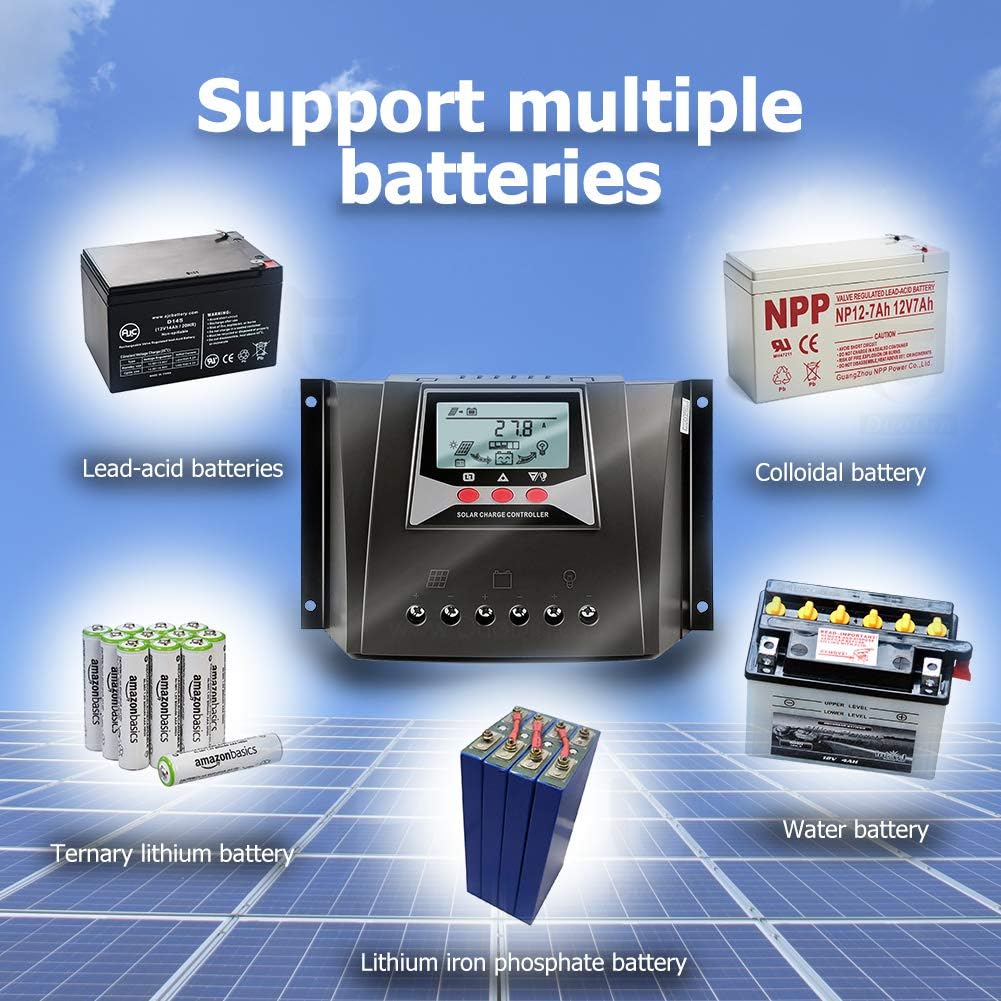

• ✦Solar panel charge controller featuring simple button operation with adjustable charging and discharging control parameters. Solar charge controller 12v supports both lead-acid and lithium battery with intelligent 3-stage PWM charging mode. It provides comprehensive protection including battery over-discharge/over-voltage/under-voltage protection, load overcurrent/short circuit protection, solar panel/battery reverse connection protection, and battery reverse discharge protection.
• ✦When installing your solar panel charge controller, proper wiring sequence is critical: First connect the battery pack to allow correct system voltage identification, then connect the solar panel after the controller completes this detection. Finally, connect the load to the controller's output terminals after manual activation to ensure safe operation.
• ✦For optimal performance of your solar regulator, please read the product description and manual carefully for complete details. If you have additional questions about installation or operation, please feel free to contact us for technical support.
