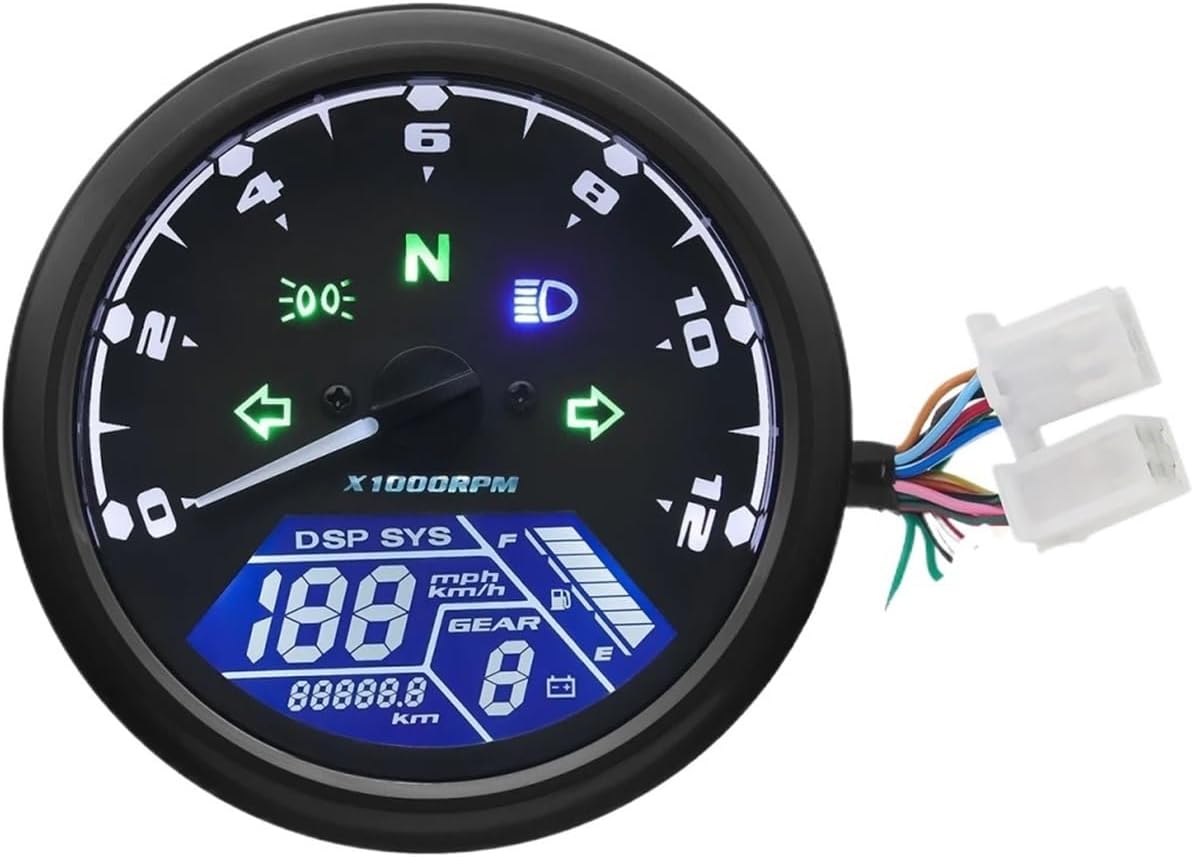

Speedometer Odometer Motorbike Universal Motorcycle Instrument 12000RMP Speedometer Odometer Tachometer 1-4 Cylinders Motorbike Gauge Moto Digital Dash

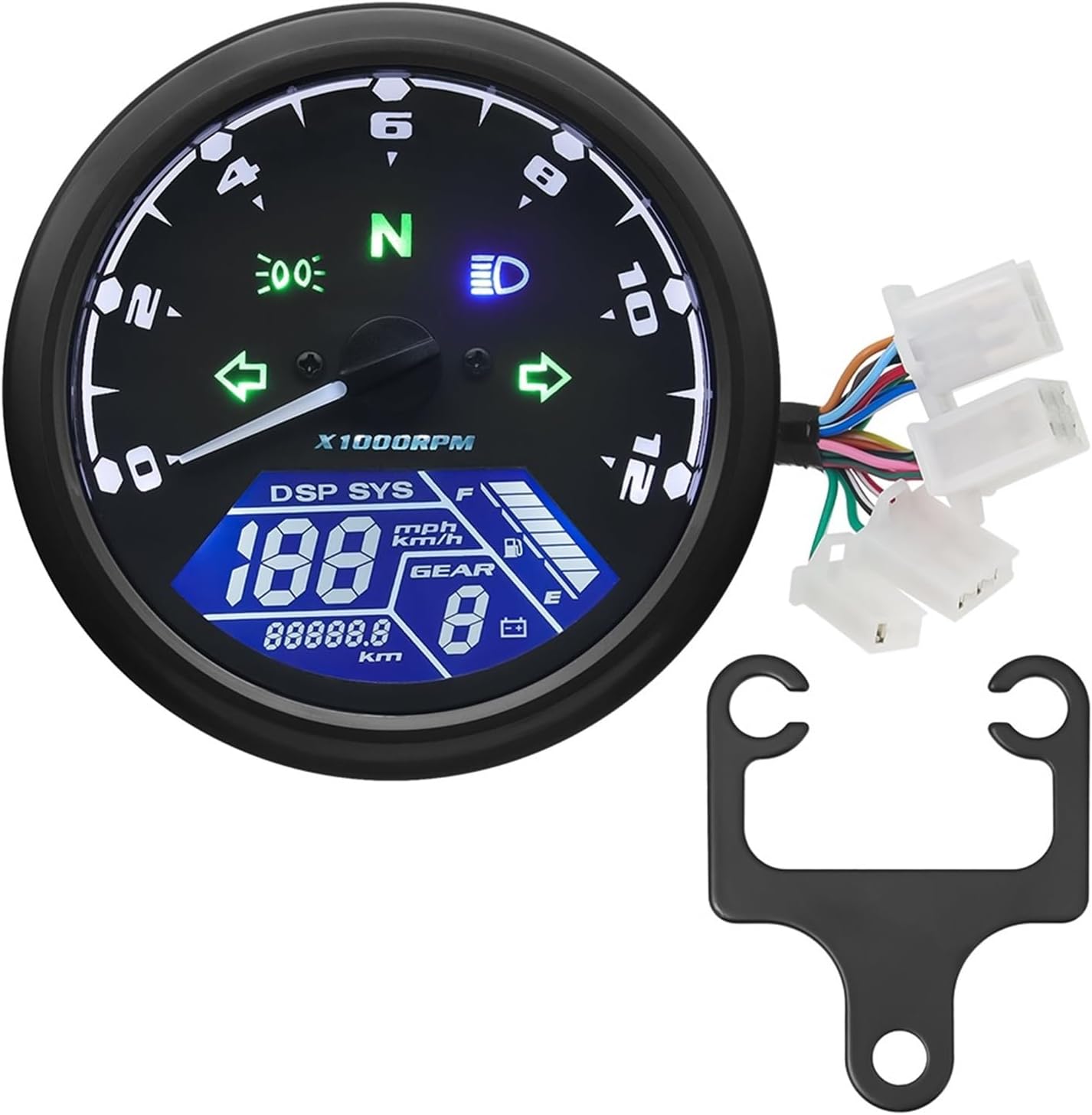

Universal Motorcycle Instrument 12000RMP Speedometer Odometer Tachometer 1-4 Cylinders Motorbike Gauge Moto Digital DashDescription:- Working voltage:8-18V- Rated voltage:DC 12V- Working temperature:20 - +70 Celsius- Storage temperature:-30 - +80 Celsius- Digital display speed range:0-199km/h- Needle display rpm range:0-12000rpm- Digital display odo distance range:0-99999.9km- Gear indicator:1-6- Backlight:Blue- Installation diameter:9cm- Height:5.3cm- Cable Length:12cmWiring Instructions (from left to right) Color:Light Blue : Right signalRed : Power+the line from lockBlue White : Fuel levelWhite Brown : Position lampBlack : SwitchBlue : High beamOrange : Left signalGreen : PowerYellow black : Pulsed coil(Engine speed)Color : Green/Red Pink Blue/Red Green/Black Yellow/Red Yellow/WhiteFunction : Gear N Gear 1 Gear 2 Gear 3 Gear 4 Gear 5Color : Green/WhiteFunction : Gear 6Color : Red/White Black/White GreenFunction : Speed sensor+ Speed sensor signal Speed sensorPackage:Package A includes:1X SpeedometerPackage B includes:1X Speedometer1X SensorPackage C includes:1X Speedometer1X HolderPackage D includes:1X Speedometer1X Holder1X SensorPackage E includes:1X HolderSpecial Features : Speedometer Odometer Diameter : 9cm Weight : 350g Height : 9cm Width : 5.5cm Length : 9cmModel Name : Motorcycle InstrumentMaterial : ABSPlease confirm the model and year of your motorcycle before placing an order.Thank you for your support.

• We are honored that you have chosen our motorcycle parts mall.
• Application: motorcycle display speedometer odometer meter
• Convenience: The motorcycle digital tachometer meter does not require complicated tools and is easy to use
• Practical: Motorcycle speedometer digital tachometer motorcycle meter does not require complicated operation and tools.
• We will provide you with the best after-sales service.
