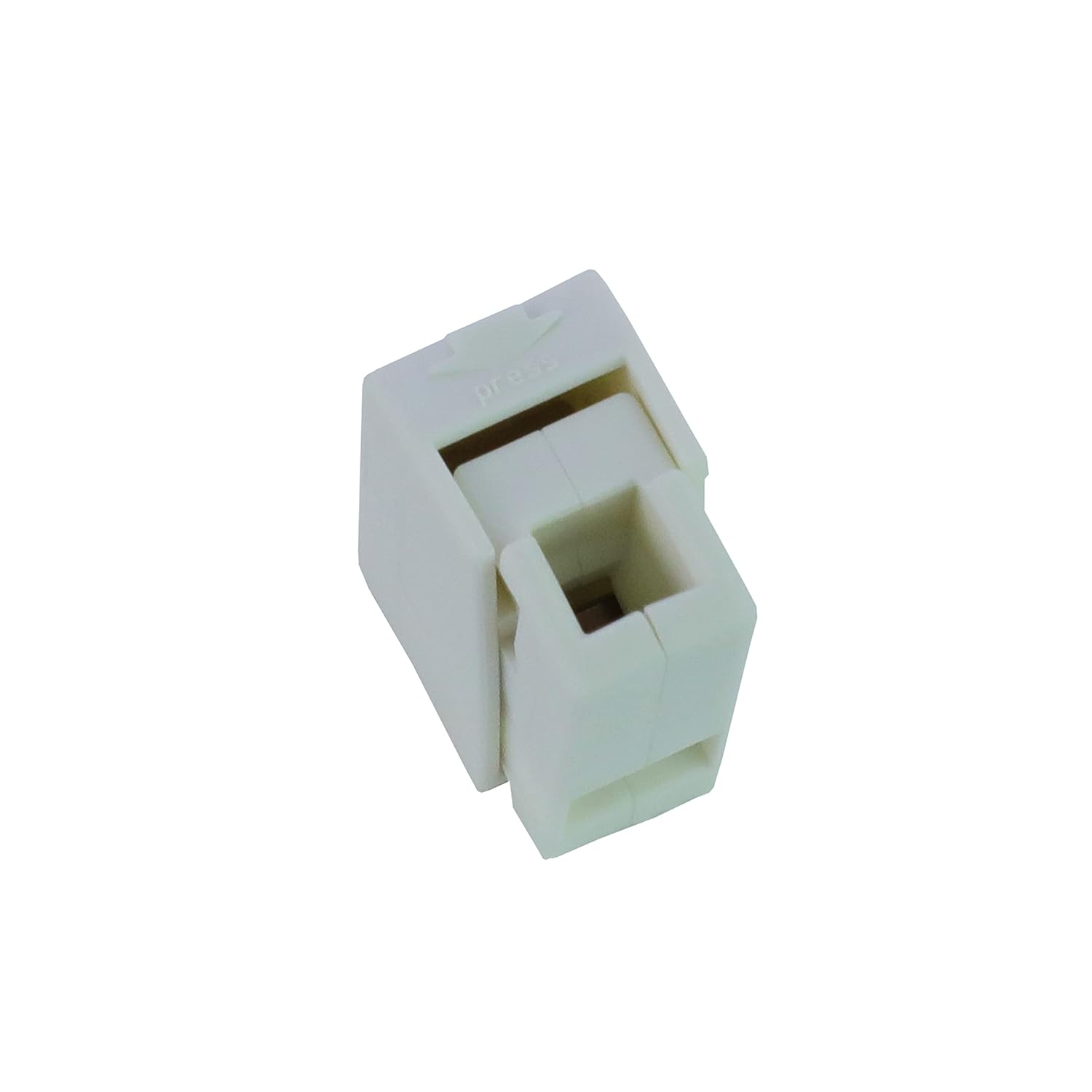

Wago 224-112 Terminal Block, Pluggable, 1 Position, 16Awg
4.2 (19 items)
Limited Time SaleUS$164.26 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215609070 | Release Date | 2026/04/12 | List Price | US$109.50 | Model Number | 215609070 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
WAGO's lighting connectors are the ideal coonection between solid and fine-wire stranded conductors. Thanks to their approval as independent equipment per EN 60998, WAGO's lighting connectors can be used in nearly all household applications and similar building installations where a connection between solid and fine-stranded conductors is required.
- [Ideal connection between solid and fine-stranded conductors] Daisy chain inline connector with PUSHWIRE and squeeze-to-open connection; 1x solid to 2x solid, stranded, or fine-stranded.
- [Solutions for your household applications] Created for nearly all household applications, and similar building installations, where a connection between solid and fine-stranded conductors is required.
- [Support numerous applications] Connect devices with flexible conductors to fixed installations.
- [Easy to use] Make tool-free connections – this is especially helpful for overhead work.
- [Approved for reliable connections] EN60998 approved as independent equipment.
| Color | White |
|---|---|
| Gauge | 16.0 |
| Model | 224-112 |
| Pitch | 9 … 11 Millimeters |
| Voltage | 400 Volts |
| Brand Name | WAGO |
| Unit Count | 1.00 Count |
| Item Weight | 2.1 Grams |
| Part Number | 224-112 |
| Manufacturer | WAGO Corporation |
| Material Type | Copper |
| Mounting Type | Clamp Mount |
| Connector Type | Clamp |
| Current Rating | 16 Amps |
| Number Of Poles | 1 |
| Specification Met | RoHS |
| Number Of Contacts | 3 |
| Number of Positions | 1 |
| Global Trade Identification Number | 04044918583596 |
